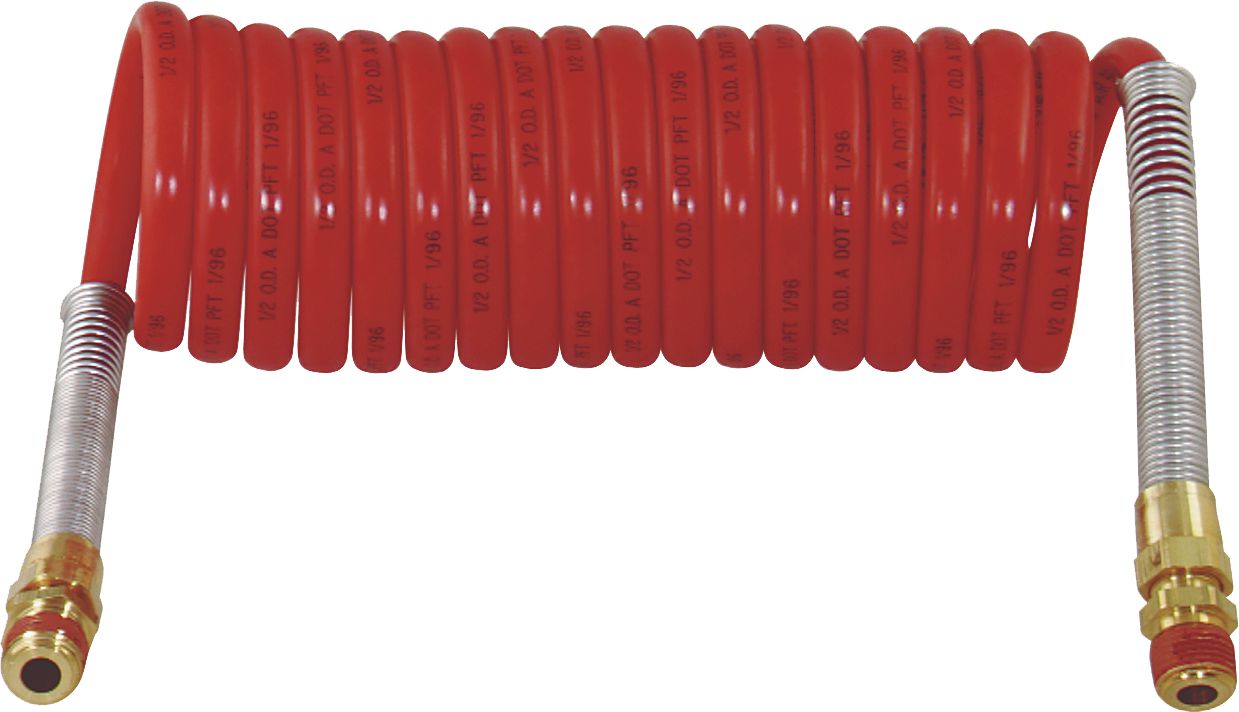

Eclipse Air Brake Coil Hose Assembly 1/2" OD x 15'
(Pack of
1)
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.
• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Frequently Bought Together
Zinc Steel Hydraulic Brake Lines 3/16" x 30"
Couldn't load pickup availability
3270-0610-0100
Couldn't load pickup availability
Zinc Steel Hydraulic Brake Lines 5/16" x 12"
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Couldn't load pickup availability
Hose Connector Vacuum Line Cap 3/8" ID
Couldn't load pickup availability
Air Conditioning R134A Service Port Adapter 3/16"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-3/4 to 3-5/8"
Couldn't load pickup availability
H23910-250R
Couldn't load pickup availability
H56904
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male 45° Brass 1/4 x 1/8-27
Couldn't load pickup availability
Hose Clamp 301 SS 1-13/16 to 2-3/4"
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Technical Specifications
| Item#: | 1172769 |
|---|---|
| Category/Performance | Nylon Air Brake Coiled Hose Assemblies |
| Industry Rating 1 | SAE J844C, Type 3B |
| Industry Rating 2 | DOT-FMVSS 106 (49 CFR 571.106) |
| Hose O.D. | 1/2 " |
| Connection Type A x B | Male NPT x Male NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 150 PSI |
| O.D. | 1/2 " |
| Extended Length | 15 ft |
| Color | Red |
| Temperature | -65° to +200° F |
| Hose Reinforcement | Polyester yarn |
| Hose Cover Material | Polyamid |
| Pigtail Length | 12 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 1.5 lb |
