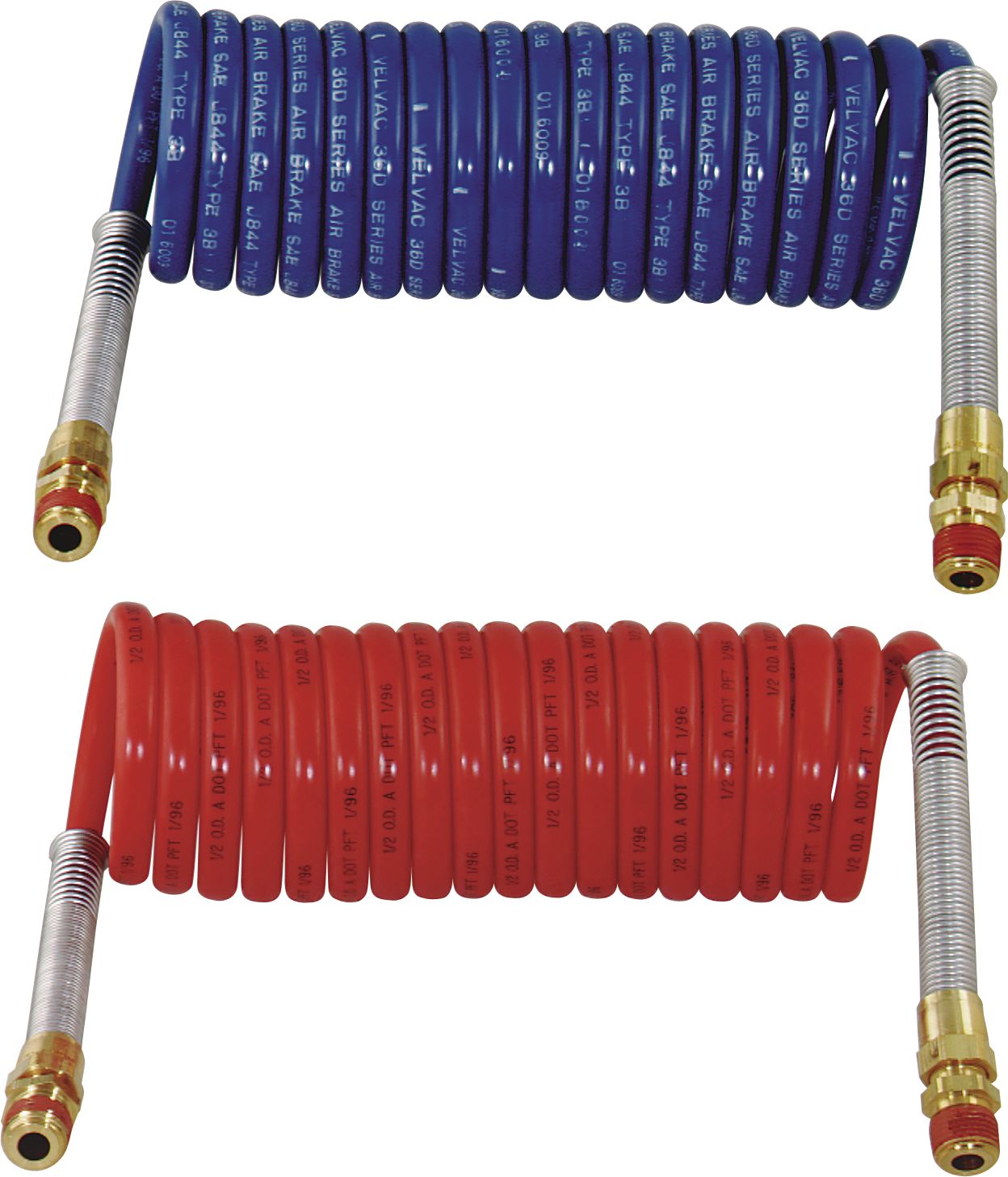

Eclipse™ Air Brake Coil Hose Assembly, 1/2" OD, 20' Length, Red and Blue, 150PSI, SAE J844C, Type 3B, 12" Pigtail
(Pack of
1)
SKU:1173428 Item#: 1173428
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.
• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Frequently Bought Together
Metric Steel Hydraulic Brake Lines US/European
$0.00
Couldn't load pickup availability
Metric Steel Hydraulic Brake Lines US/European
$0.00
Couldn't load pickup availability
3270-0810-0500
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
$0.00
Couldn't load pickup availability

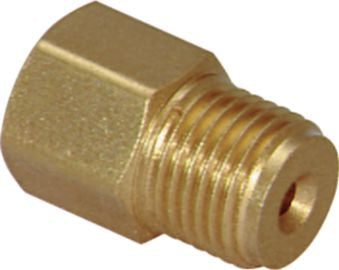

DOT Connector Male Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability

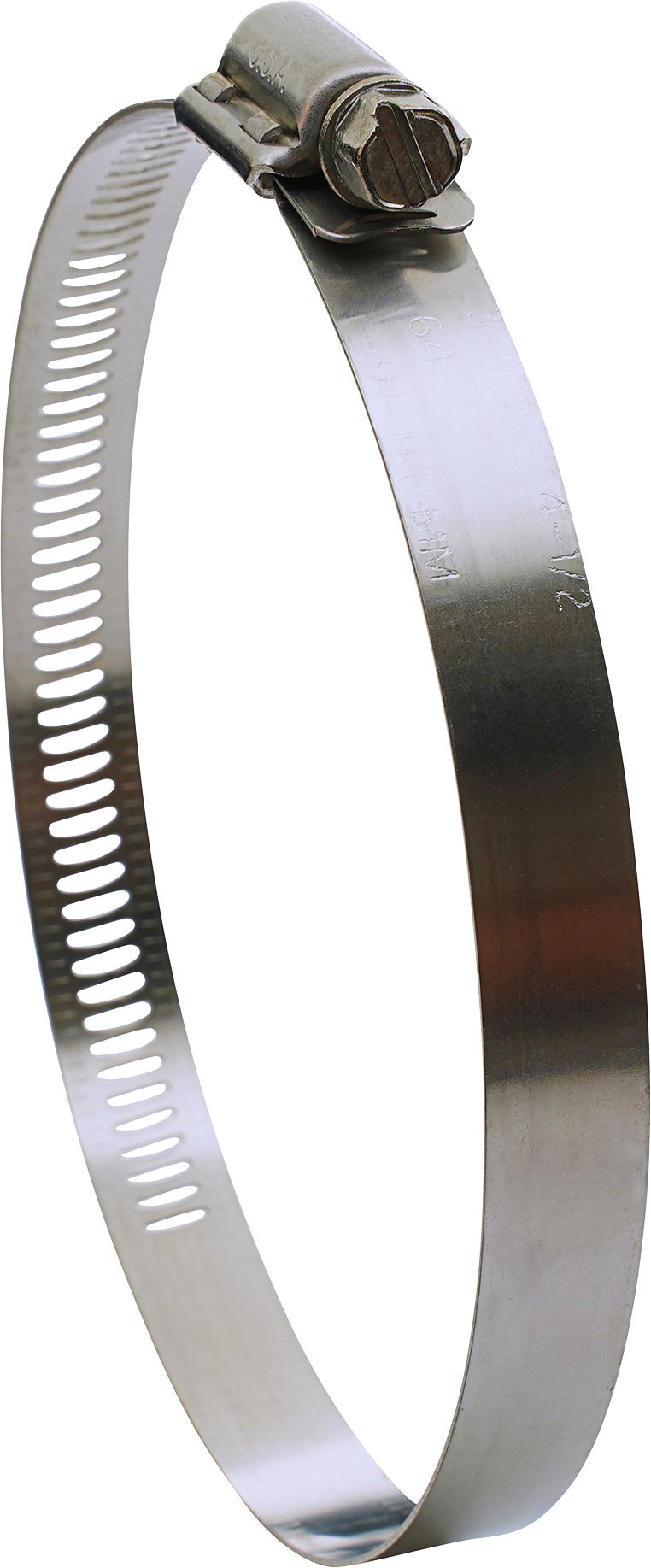

Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Product Description
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Technical Specifications
| Item#: | 1173428 |
|---|---|
| Manufacturer Model #: | 20CA12-12 |
| Category / Performance | Nylon Air Brake Coiled Hose Assemblies |
| Industry Rating 1 | SAE J844C, Type 3B |
| Industry Rating 2 | DOT-FMVSS 106 (49 CFR 571.106) |
| Hose O.D. | 1/2 " |
| Connection Type A x B | Male NPT x Male NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 150 PSI |
| O.D. | 1/2 " |
| Extended Length | 20 ft |
| Color | Red and Blue |
| Temperature | -65° to +200° F |
| Hose Reinforcement | Polyester yarn |
| Hose Cover Material | Polyamid |
| Pigtail Length | 12 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 3.5 lb |
