Home Brass Elbow Brass Inverted Flare 90° 1/8-27 x 5/16"
Brass

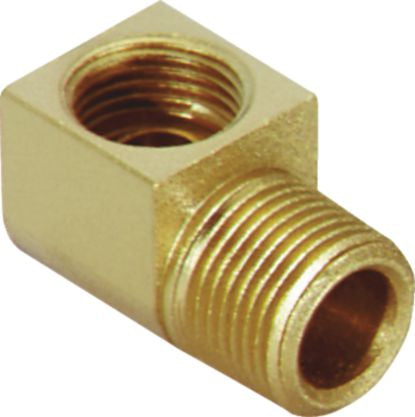

Elbow, Brass, Inverted Flare, 90°, 1/8-27 x 5/16", Male NPT x Tube, 500PSI
(Pack of 10)

Lawson

• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and welded steel tubing that can be flared• Pressure depends on tubing used. Will stand burst pressure of standard tube – up to 5,000 PSI with double-flared and 3,500 PSI with copper tube• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Automotive brake, oil and fuel lines; LP and natural gas connections; hazardous liquids; air, water, fuel, oil or non-corrosive gaseous chemicals

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Air Line Connector Brass SAE 45° Flare 1/4 x 3/8"

Item#: 5171

Forged Body Ball Valve Brass 1/2-14 x 1/2-14

Item#: 51205

Compression Union Brass 4 x 4"

Item#: 51056

Copper Reducing Coupling, 1" x 3/4"

Item#: 1693415

Copper No Stop Coupling, 1" x 1"

Item#: 1693403

Copper Reducing Coupling, 2-1/2" x 1-1/2"

Item#: 1693430

FLEXAIR 3/8" I.D. x 25' air hose

Item#: 1585089

FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler

Item#: 1585088

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11914

Fender Apron Drive Rivet 8mm Hole

Item#: 1365427

Front Fender Push-Type Retainer Nylon 20mm

Item#: KT11397

Fender Bumper Shield Retainer 11/16"

Item#: P62445

Product Description

• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and welded steel tubing that can be flared• Pressure depends on tubing used. Will stand burst pressure of standard tube – up to 5,000 PSI with double-flared and 3,500 PSI with copper tube• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Automotive brake, oil and fuel lines; LP and natural gas connections; hazardous liquids; air, water, fuel, oil or non-corrosive gaseous chemicals

Technical Specifications

Item#: 5258
Fitting Type Inverted Flare
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Male NPT x Tube
Fitting Dimension A 1/8-27
Fitting Dimension B 5/16 "
Working Pressure 500 PSI
Temperature Range -65 to 250 F
UNSPSC #: 40170000
TAA Compliant: No
Weight: 0.51 lb
