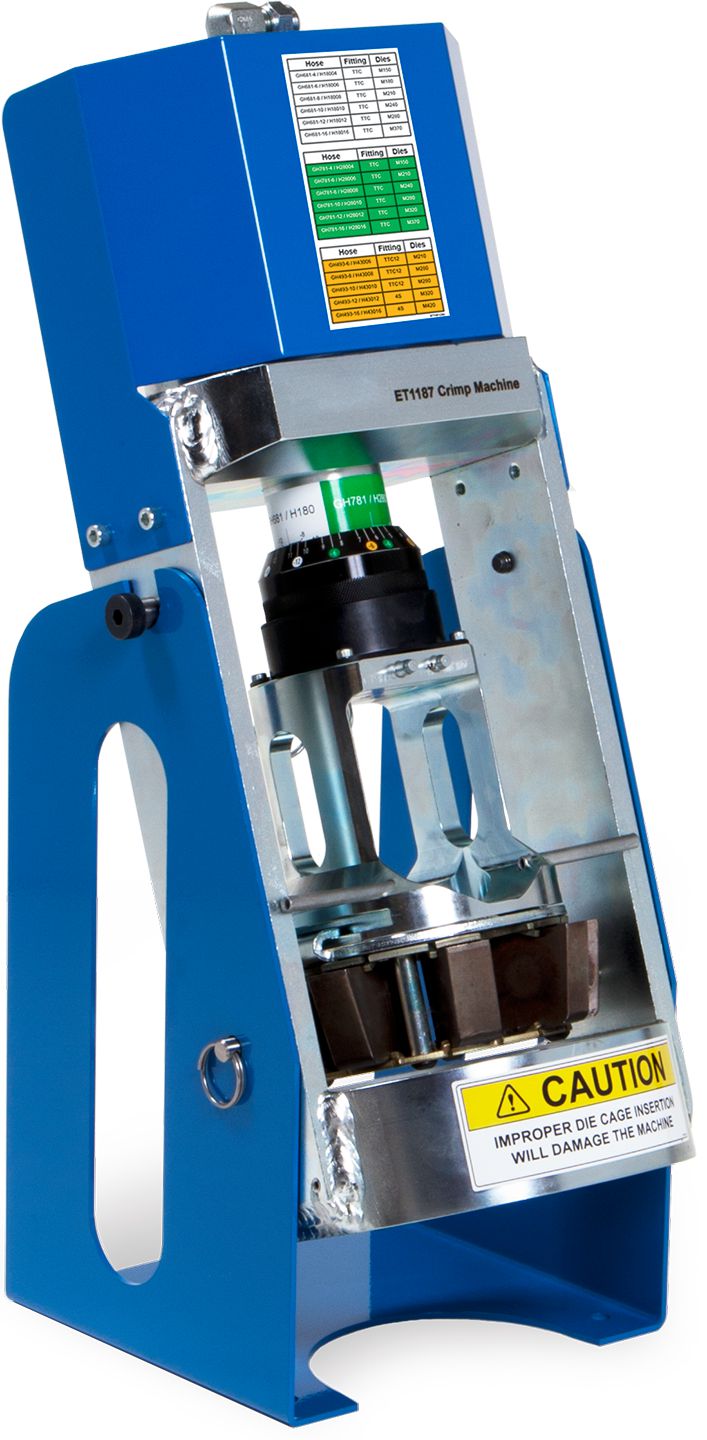

ET1187 Portable Variable Crimp Machine - Bench Mount with Electric 110v Pump
(Pack of
1)
SKU:1600765 Item#: 1600765
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.
• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Frequently Bought Together
4S Series Spiral Collet Orange
$0.00
Couldn't load pickup availability
Spacer Ring Grey
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
$0.00
Couldn't load pickup availability
Hydraulic Union 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Union 7/16-20 x 1/8-27
$0.00
Couldn't load pickup availability
C5129X4
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Technical Specifications
| Item#: | 1600765 |
|---|---|
| Description | 110V Electric Pump and ET1187 Variable Bench Mount Crimper |
| Crimper | ET1187 Variable Crimper |
| Power Source | 110V Electric Pump |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
