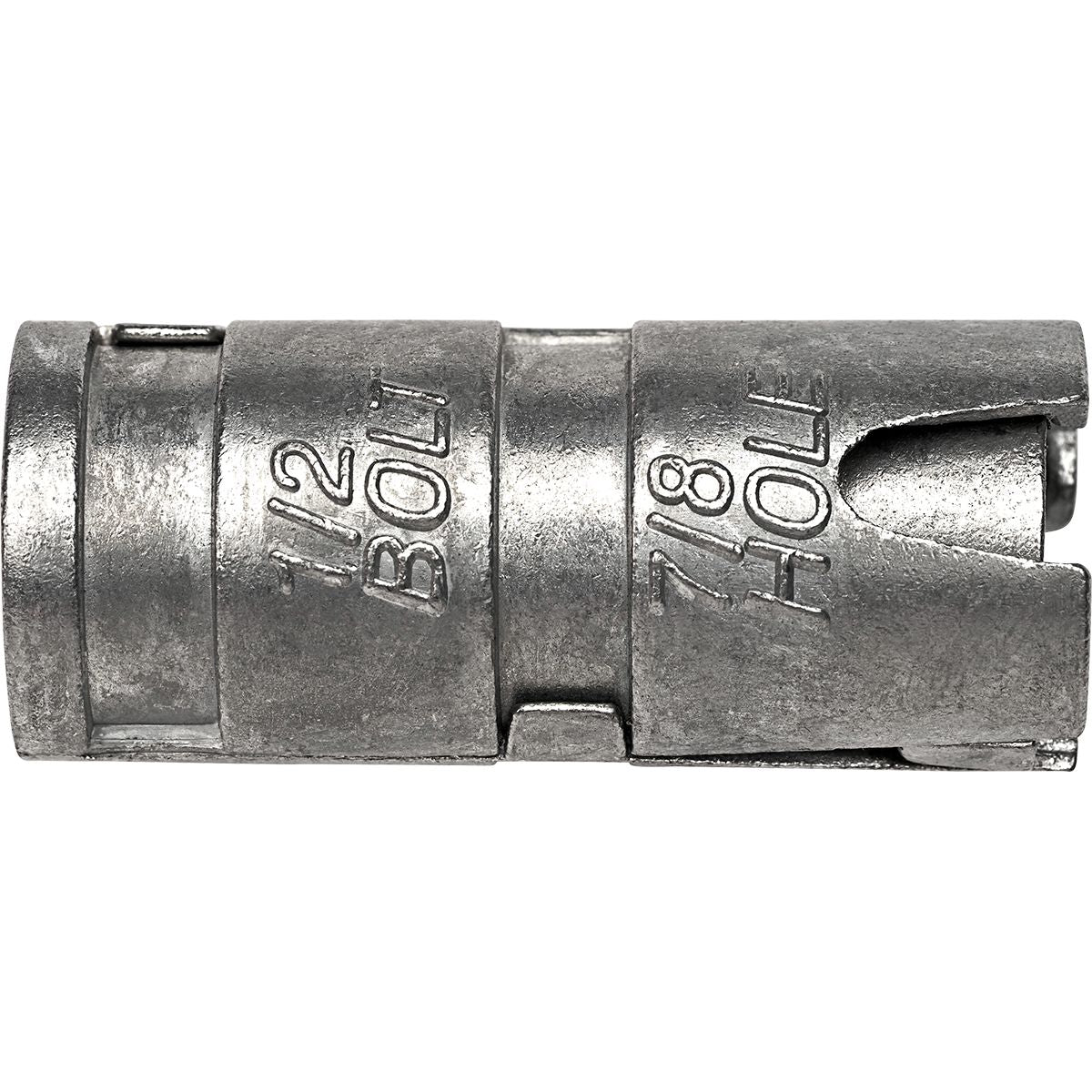

Expansion Shield Anchor for Machine Bolts, Alloy Steel, Zinc Finish, 1/2" Drill Size, 1/4"
(Pack of
25)
SKU:84044 Item#: 84044
• 100% rustproof zinc alloy
1. Place anchor, nut end first, into hole, flush with surface.
2. Position object to be fastened and bolt into place.
3. Length of bolt should equal thickness of material being fastened, plus shield length.
Frequently Bought Together
Masonry Anchor Assortment 700Pcs
Item#: LP729BL
$0.00
Couldn't load pickup availability
Masonry Anchor Assortment 700Pcs
Item#: LP728BL
$0.00
Couldn't load pickup availability
Toggle Bolt Anchor Assortment 70Pcs
Item#: LP665BL
$0.00
Couldn't load pickup availability
Lead Machine Screw Anchor 3/8-16
Item#: 25097
$0.00
Couldn't load pickup availability
Security Anchor Steel 1/2 x 2-3/4"
Item#: 59632
$0.00
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 3/8 x 5"
Item#: 59614
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Item#: 55603
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M6
Item#: 80261
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm
Item#: 55604
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Product Description
• 100% rustproof zinc alloy1. Place anchor, nut end first, into hole, flush with surface.
2. Position object to be fastened and bolt into place.
3. Length of bolt should equal thickness of material being fastened, plus shield length.
Technical Specifications
| Item#: | 84044 |
|---|---|
| Anchor Size | 1/4 " |
| Type | Expansion Shield Anchor |
| Material | Alloy Steel |
| Finish | Zinc |
| Proof Test Load | 800 lb |
| Drill Size | 1/2 " |
| Minimum Drill Depth | 1-1/4 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 0.65 lb |
