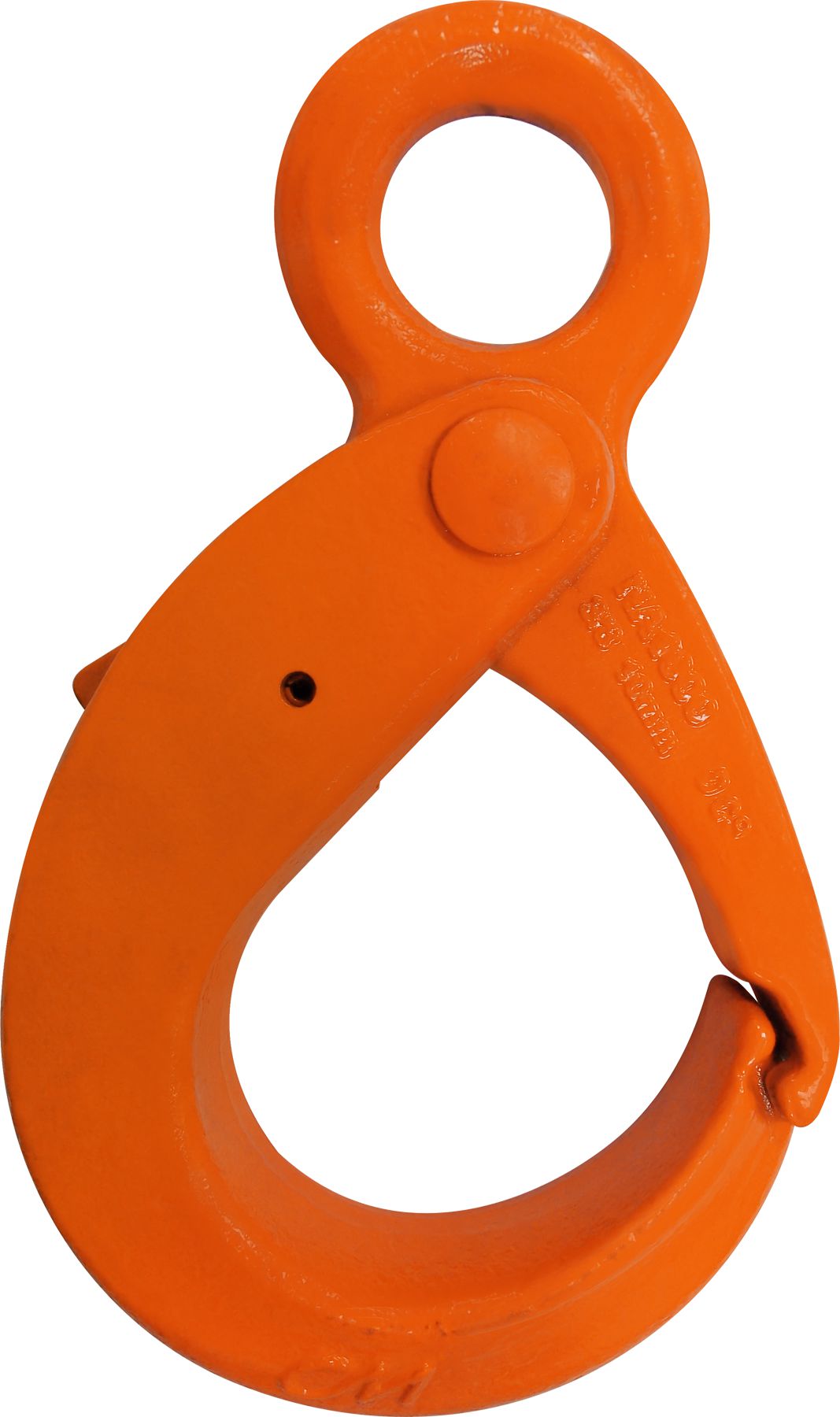

Eye Style Latchlok Hook, Grade 100, 3/8", 8,800 lb WLL
(Pack of
1)
SKU:1429765 Item#: 1429765
• Large eye design for use with chain, wire rope and synthetic material
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Repair Lap Link, 1/4", 325 lb WLL, Zinc
Couldn't load pickup availability
Double Clevis (Mid-Link), 3/8", 6,600 lb WLL
Couldn't load pickup availability
Double Clevis (Mid-Link), 5/8", 13,000 lb WLL
Couldn't load pickup availability
Bushing Swivel Style Latchlok Hook, Grade 100, 9/32", 4,300 lb WLL
Couldn't load pickup availability
Grade 43 Clevis Slip Hook, 1/2", 9,200 lb WLL
Couldn't load pickup availability
Clevis Grab Hook, Stainless Steel, 1/2"
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/8", 2,000 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Product Description
• Large eye design for use with chain, wire rope and synthetic material• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429765 |
|---|---|
| Manufacturer Model #: | M626010 |
| Type | Eye Style Latchlok Hook |
| Grade | 100 |
| Chain Size | 3/8 " |
| Working Load Limit | 8,800 lb |
| Material | Alloy Steel |
| Color | Orange Powder Coated |
| Dimension A | 1.36 " |
| Dimension D | 4.76 " |
| Dimension F | 2.27 " |
| Dimension H | 0.59 " |
| Dimension K | 1.14 " |
| Dimension M | 6.65 " |
| Dimension P | 1.07 " |
| UNSPSC #: | 31162605 |
| TAA Compliant: | Yes |
| Weight: | 3.97 lb |
