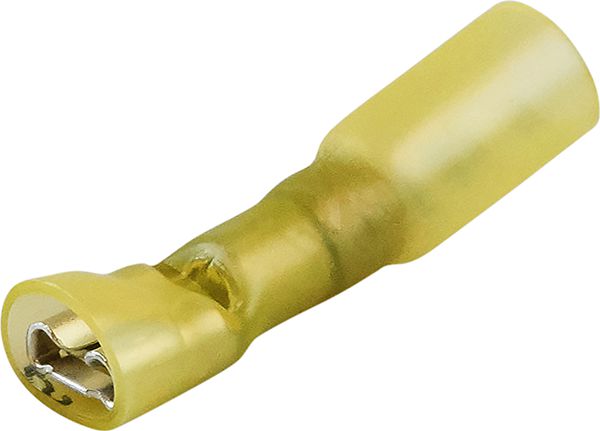

Female Disconnect Terminal, Heat Shrink, Polyolefin Insulated, 12 to 10 AWG, 1/4" Tab Width, Yellow
(Pack of
20)
SKU:15048 Item#: 15048
• The ultimate crimped, soldered and sealed electrical connectors – crimped for maximum reliability, soldered for strength and conductivity, and sealed for superior durability
• These terminals are a combination of a metal crimp connector, a solder and flux ring, and polyolefin heat shrink tubing with an adhesive lining
• The crimp connector has a window for visual inspection of the soldered connection
• Translucent adhesive-lined heat shrink tubing allows for a visual inspection and provides
Crimp and Solder
• Female – Superior clamping power even after many connections
Frequently Bought Together
Male Quick Slide Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Clear
$0.00
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Male Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 26 to 22 AWG
$0.00
Couldn't load pickup availability
Product Description
• The ultimate crimped, soldered and sealed electrical connectors – crimped for maximum reliability, soldered for strength and conductivity, and sealed for superior durability• These terminals are a combination of a metal crimp connector, a solder and flux ring, and polyolefin heat shrink tubing with an adhesive lining
• The crimp connector has a window for visual inspection of the soldered connection
• Translucent adhesive-lined heat shrink tubing allows for a visual inspection and provides
Crimp and Solder
• Female – Superior clamping power even after many connections
Technical Specifications
| Item#: | 15048 |
|---|---|
| Type | Crimp and Solder Seal |
| Wire Gauge | 12-10 AWG |
| Tab Width | 1/4 " |
| Connection Type | Female |
| Color | Yellow |
| Approvals | CSA |
| Style | Crimp and Solder Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
