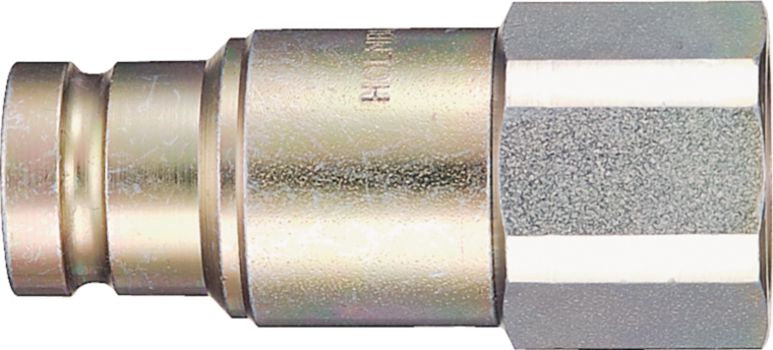

Flatface Hydraulic Quikconnect Fitting, 3/4 ORBF X 1/2 Male Flatface Plug, ISO 16028 Compliant, Connects Against 250 PSI Pressure
(Pack of
1)
SKU:DY44700161 Item#: DY44700161
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.
• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Frequently Bought Together
8MQFF-12FBK Quick Disconnect Couplers
Couldn't load pickup availability
8MJ-8MJ-8MJ Adapters
Couldn't load pickup availability
8MQFF-8FBPP Quick Disconnect Couplers
Couldn't load pickup availability
Hose Clamp 301 SS 1/2 to 29-32"
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
Fuel Line Hose 3/8" ID x 25'
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 1/4-18
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1/2" FPT X 1/2" Body
Couldn't load pickup availability
Hydraulic Check Valve 1-11/12" x 1-11/12
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Product Description
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Technical Specifications
| Item#: | DY44700161 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Flat Face Male Plug |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 1/2 " |
| Thread Size | 1-1/16-12 |
| Thread Style | Female O-Ring Boss |
| Burst Pressure | 17400 PSI |
| Seal Material | Nitrile O-Ring with PTFE Bonded Seals |
| Material | Zinc Plated Steel |
| Locking Mechanism | Multiple Metal Balls |
| Flow | 12 gal/min |
| Length | 3 " |
| Temperature Range | -4°F to 257°F (-20°C to 125°C) |
| Working Pressure | 4,350 PSI |
| Hex Size | 36mm (1.42") |
| Maximum Diameter | 1.40 " |
| Coupled Length | 5.40 " |
| Tip Diameter | 0.96 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.58 lb |
