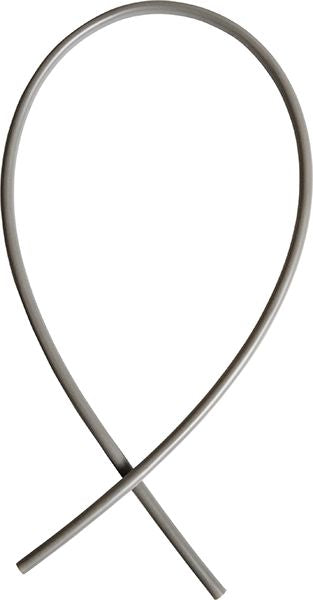

Flow Form Heat Shrink Tubing, 20 to 18 AWG, Gray, 2' Length, 1/16" ID After Shrinkage, 3:1 Shrink Ratio
(Pack of
5)
SKU:P32315 Item#: P32315
• 3:1 shrink ratio
• Prevents failure due to corrosion, vibration, abrasion and strain
• Sturdy dual wall construction – the outer wall shrinks, providing strength, rigidity and abrasion resistance, while the inner wall provides a water-resistant seal to keep out contaminants and water
• Chemical-resistant – not affected by road salt, oil, diesel fuel, gasoline, dust, moisture and battery acid
• Easy to install – shrinks with a heat gun, torch or other heat source
• Color-coded for easy size identification
• Easily cuts to size
• High dielectric strength: 500V/mil; up to 16,000V per application
• Temperature range: –67°F to +230°F (–55°C to +110°C)
• Voltage rating in USA 600V; in Canada 32V
Applications
• Electrical terminals and connectors exposed to corrosion, pull-out or vibration
• Repair welding cables and insulate stingers and lugs
• Installation and repair of vehicular equipment wiring and lights
• Strain relief for robotic applications
• Insulate tool handles to reduce electric shock
• Seal butt connectors for in-line splices
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 18 to 16 AWG Black
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Black
$0.00
Couldn't load pickup availability
Insulform Heat Shrink Tubing 6 to 2/0 AWG Black
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 4 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
$0.00
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
$0.00
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Prevents failure due to corrosion, vibration, abrasion and strain
• Sturdy dual wall construction – the outer wall shrinks, providing strength, rigidity and abrasion resistance, while the inner wall provides a water-resistant seal to keep out contaminants and water
• Chemical-resistant – not affected by road salt, oil, diesel fuel, gasoline, dust, moisture and battery acid
• Easy to install – shrinks with a heat gun, torch or other heat source
• Color-coded for easy size identification
• Easily cuts to size
• High dielectric strength: 500V/mil; up to 16,000V per application
• Temperature range: –67°F to +230°F (–55°C to +110°C)
• Voltage rating in USA 600V; in Canada 32V
Applications
• Electrical terminals and connectors exposed to corrosion, pull-out or vibration
• Repair welding cables and insulate stingers and lugs
• Installation and repair of vehicular equipment wiring and lights
• Strain relief for robotic applications
• Insulate tool handles to reduce electric shock
• Seal butt connectors for in-line splices
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P32315 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 20-18 AWG |
| Length | 2 ft |
| Color | Gray |
| I.D. Before Shrinkage | 3/16 " |
| I.D. After Shrinkage | 1/16 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness Before Shrinkage | 0.020 " |
| Wall Thickness After Shrinkage | 0.043 " |
| Dielectric Strength | 500 - 16,000 V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
