Hand Wash Sink with Axion Eye/Face Wash
(Pack of
1.0)

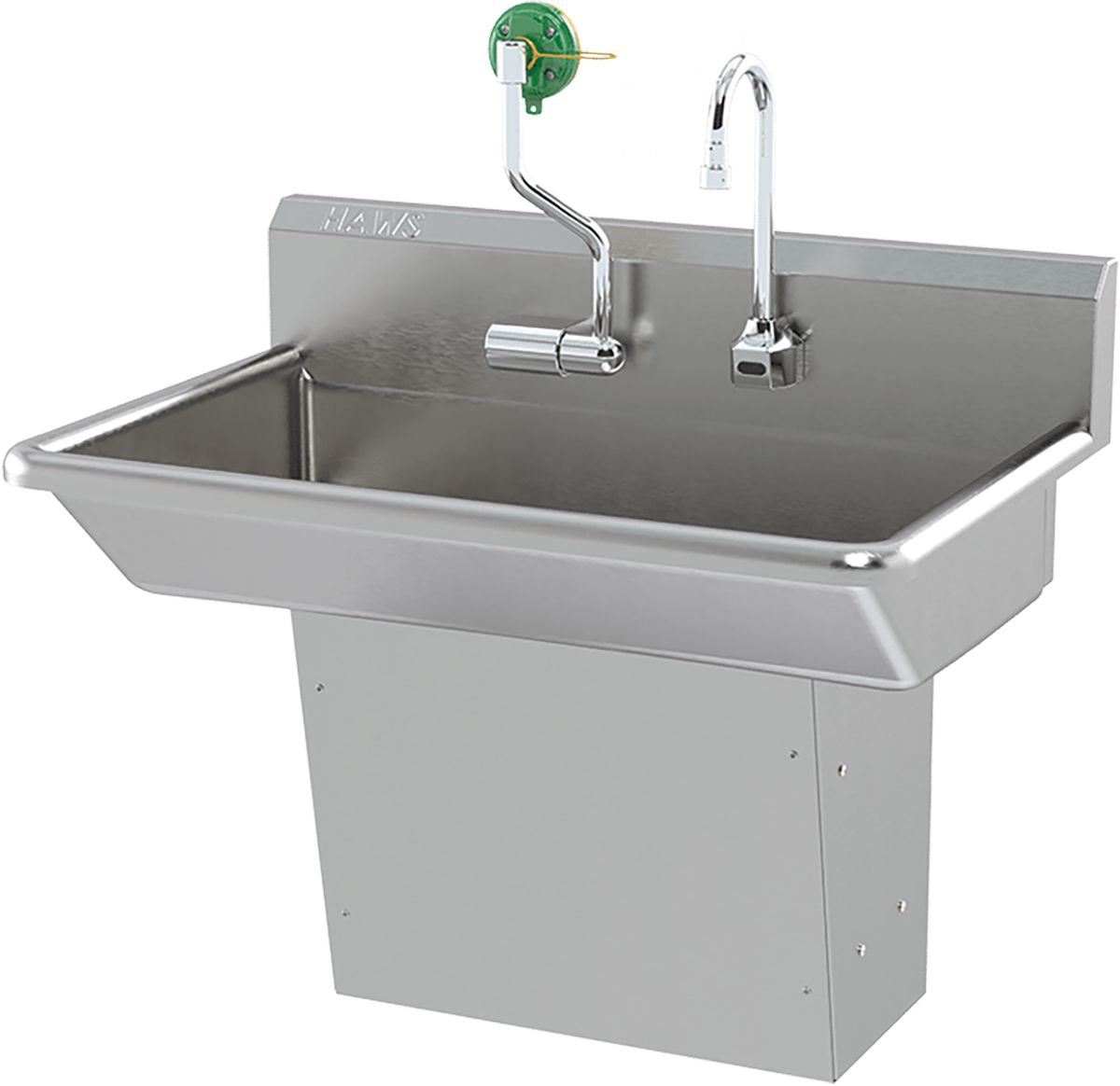

A is a wall-mounted barrier-free hand wash sink equipped with a motion-activated goose-neck faucet. 30" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is an eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.
• 30" wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
• Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
• Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
• Mixing valve included supplies tepid water to the eyewash and faucet
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Beautiful satin finish resists stains and corrosion
• Easy access to the mixing valve, faucet solenoid valve, plumbing and drain through the large front panel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Faucet-Mount Eye Wash
Couldn't load pickup availability
Saline Solution
Couldn't load pickup availability
Service Dispatch Number 2000 to 2999
Couldn't load pickup availability
Adhesive-Back Shim Stock 9/16 x 1" x 30'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1" x 50'
Couldn't load pickup availability
Butyl Windshield Tape 3/8" x 15'
Couldn't load pickup availability
Wheel Flare Molding Clip with Sealer Nylon
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Portable Gravity Fed Eyewash 7501
Couldn't load pickup availability
Portable Self Contained Heated Eyewash
Couldn't load pickup availability
PhysiciansCare Eyewash Station, Single 16 oz. Screw Cap Bottle
Couldn't load pickup availability
Product Description
A is a wall-mounted barrier-free hand wash sink equipped with a motion-activated goose-neck faucet. 30" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is an eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.• 30" wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
• Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
• Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
• Mixing valve included supplies tepid water to the eyewash and faucet
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Beautiful satin finish resists stains and corrosion
• Easy access to the mixing valve, faucet solenoid valve, plumbing and drain through the large front panel
Technical Specifications
| Item#: | 1647995 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face/Hand |
| Description | Eye/Face Wash Station |
| Flow Rate | 1.2 gal/min |
| Water Supply | 1-1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA B125.1, CSA B45.4, NSF61, ASSE 1017, ASSE 1070-2015, ADA Compliant |
| Material | Stainless Steel |
| Mount Style | Wall |
| Color | Silver |
| Eyewash Bowl Diameter | 30 " |
| Width | 20 " |
| Height | 35-3/8 " |
| Eye Wash Material | Stainless Steel |
| Body Material | Stainless Steel |
| Includes | Universal Eyewash Sign, Operation Label, Template |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
