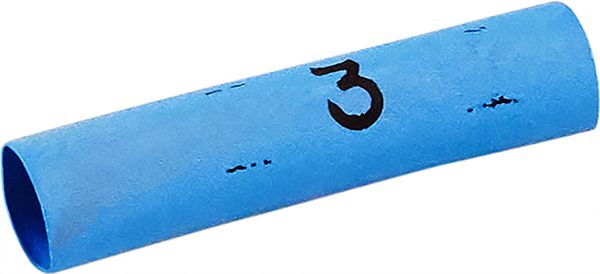

Heat Shrink Wire Marker Tag, 16 to 14 AWG, Blue, 2400 PSI Tensile Strength, 2:1 Shrink Ratio, 400% Elongation, Legend 3
(Pack of
10)
SKU:98531 Item#: 98531
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing
• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Wire N Rite 1/2X1-7/8
$0.00
Couldn't load pickup availability
Wire Marker Tag 8' Length 3mm Thickness #2
$0.00
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 22 to 18 AWG #7
$0.00
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 18 to 16 AWG Black
$0.00
Couldn't load pickup availability
Product Description
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Technical Specifications
| Item#: | 98531 |
|---|---|
| Style | Heat-Shrink Wire Markers |
| Marker Designation | 3 |
| Color | Blue |
| Shrink Ratio | 2:1 |
| Tensile Strength | 2400 PSI |
| Elongation | 400 % |
| Operating Temperature Range | -67 - 275 °F |
| Dielectric Strength | 1,300 V/mm |
| Voltage Rating | 600 V |
| Shrink Temperature | 250 °F |
| Wire Gauge | 16-14 AWG |
| Approvals | UL, CSA, and meets military standards |
| Type | Wire Marker |
| UNSPSC #: | 39131500 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
