Hex Cap Screw Property Class 10.9 M8-1.25 x 20mm
(Pack of
1.0)
• American-made Property Class 10.9 metric fasteners are 25% stronger than conventional Property Class 8.8 fasteners

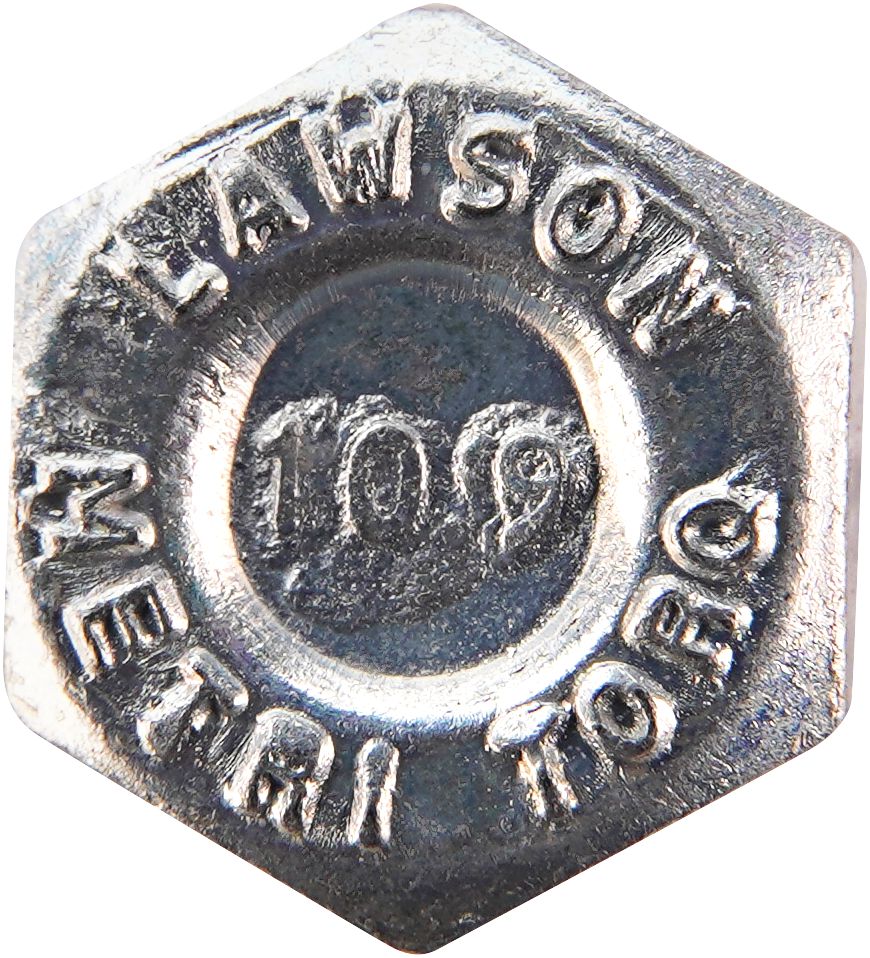

• Specially designed head markings
• Lot control traceability to insure product integrity
• 20% higher cap screw head for easier wrenching ability
• 1,040 MPa (150,000 PSI) nut proof strength designed to support Metri-Torq® cap screw loads
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
• Property Class 10.9 – 1,040 MPa (150,000 PSI tensile strength)
Specially designed for the maintenance and repair market
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 60mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 25mm
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-11 x 3-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-11 x 5"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 7/16-14 x 1-3/4"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Acorn Nut A2 Stainless Steel M6-1
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• American-made Property Class 10.9 metric fasteners are 25% stronger than conventional Property Class 8.8 fasteners• Specially designed head markings
• Lot control traceability to insure product integrity
• 20% higher cap screw head for easier wrenching ability
• 1,040 MPa (150,000 PSI) nut proof strength designed to support Metri-Torq® cap screw loads
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
• Property Class 10.9 – 1,040 MPa (150,000 PSI tensile strength)
Specially designed for the maintenance and repair market
Technical Specifications
| Item#: | M4282 |
|---|---|
| Style | Premium |
| Diameter | M8 |
| Thread Pitch | 1.25 mm |
| Thread | Coarse |
| Length | 20 mm |
| Type | Hex Cap Screw |
| Across Flats | 13 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Bright Zinc |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 933 |
| Head Style | High Hex |
| Head Height | 6.4 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 0.59 lb |
