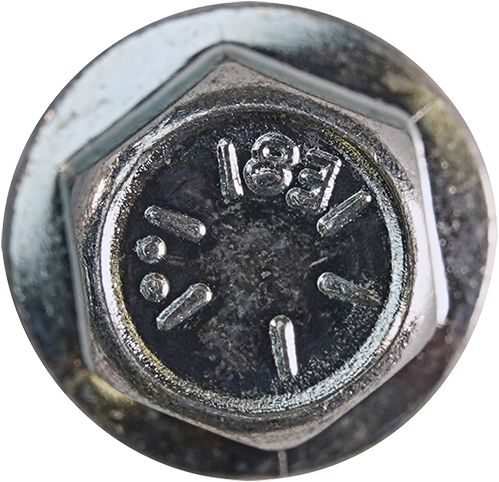

Hex Flange Bolt, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 9/16" Across Flats, 3/8-16 x 3"
(Pack of
25)
• Available in coarse and fine thread
• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-48
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
• Available in coarse and fine thread• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment
Technical Specifications
| Item#: | 51945 |
|---|---|
| Type | Hex Flange Bolt |
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Thread | Coarse |
| Length | 3 " |
| Finish | Bright Zinc |
| Material | Alloy Steel |
| Grade | 8 |
| Head Style | Hex Flange |
| Size | 3/8-16X3 " |
| Across Flats | 9/16 " |
| Specifications | IFI-111 |
| Tensile Strength | 150,000 PSI |
| Maximum Temperature | 650 °F |
| UNSPSC #: | 31161620 |
| TAA Compliant: | Yes |
| Weight: | 2.9 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
