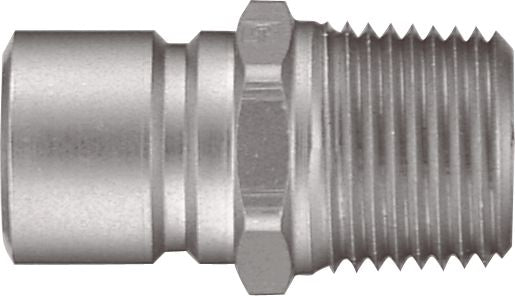

Hydraulic Quick Connect Coupler 1/2" x 1/2-14
(Pack of
1.0)
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 0.49" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.65" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.57" x 250'
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Universal Vacuum Hose Connector 3/16"
Couldn't load pickup availability
Hydraulic Dust Cap for Nipple PVC/Rubber 3/4"
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 3/4" FPT X 1/2" Body
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 1/2-14
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Technical Specifications
| Item#: | 84601 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'A' |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPT |
| Burst Pressure | 11,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Locking Mechanism | 9 Balls |
| Flow | 12 gal/min |
| Length | 2.49 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,625 PSI |
| Hex Size | 1.06 " |
| Maximum Diameter | 1.50 " |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.52 lb |
