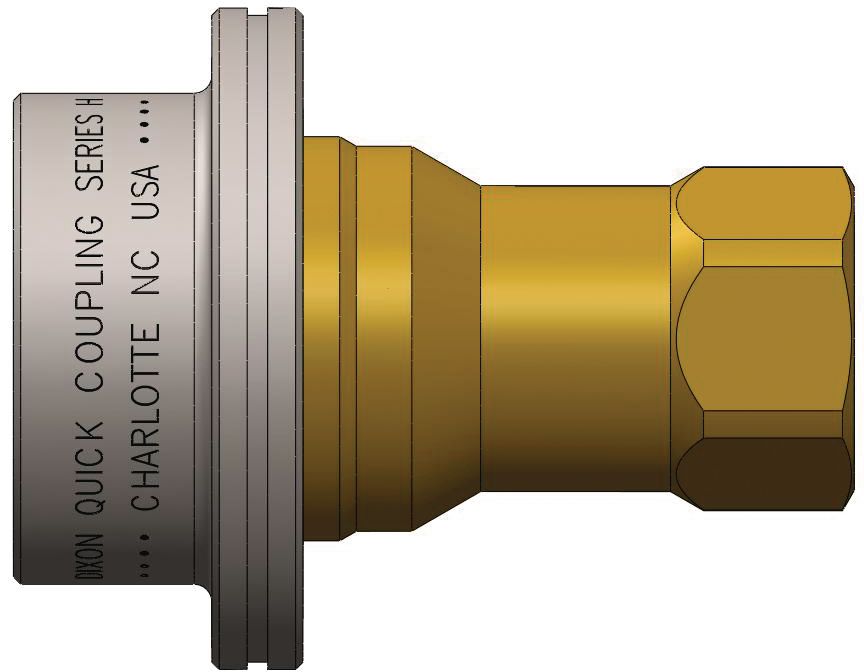

Hydraulic Quick Connect Coupler, Brass, ISO 7241 Series 'B', 1/4" x 1/4-18, Female NPTF, 2.26" Length, 200PSI
(Pack of
1)
SKU:21001 Item#: 21001
• Flanged sleeves are designed for ease of operation while wearing gloves
• EPDM steam seals formulated to withstand continuous steam service
• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity
• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B
• Temperature range: –70°F to + 400°F (–40°C to +204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Aluminum 3/4"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 1/2-14
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Flanged sleeves are designed for ease of operation while wearing gloves• EPDM steam seals formulated to withstand continuous steam service
• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity
• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B
• Temperature range: –70°F to + 400°F (–40°C to +204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Technical Specifications
| Item#: | 21001 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'B' |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,500 PSI |
| Seal Material | EPDM |
| Material | Brass |
| Locking Mechanism | 8 Balls |
| Flow | 88 lb/h |
| Length | 2.26 " |
| Temperature Range | -70 to 400 F |
| Working Pressure | 200 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 1.42 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
