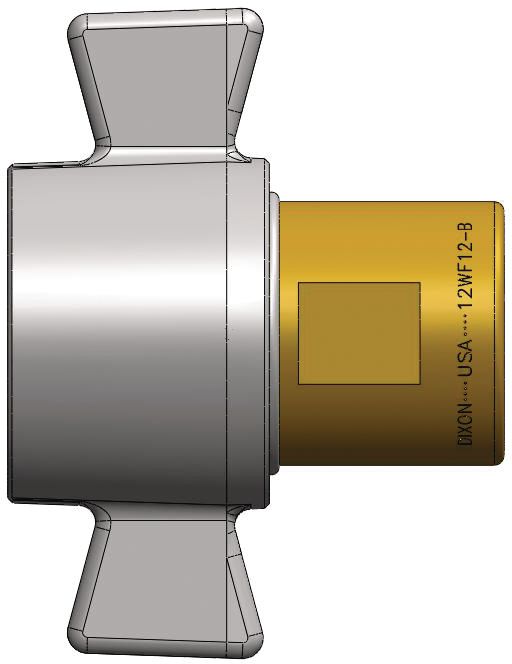

Hydraulic Quick Connect Coupler, Brass, Wing Style, 1" x 1-11-1/2, Female NPTF, 3.78" Length, 3000PSI
(Pack of
1)
SKU:20969 Item#: 20969
• Provides no-spill connections between trucks/tractors and trailers
• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Air Conditioning O-Ring HSN Green
$0.00
Couldn't load pickup availability
Braided Collet Orange
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x G-3/8-19
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 1/2-14
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1" x 1-11-1/2
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Product Description
• Provides no-spill connections between trucks/tractors and trailers• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Technical Specifications
| Item#: | 20969 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Wing Style |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,100 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Brass |
| Locking Mechanism | Threaded |
| Flow | 40 gal/min |
| Length | 3.78 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,000 PSI |
| Hex Size | 1.89 " |
| Maximum Diameter | 4.45 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 2.04 lb |
