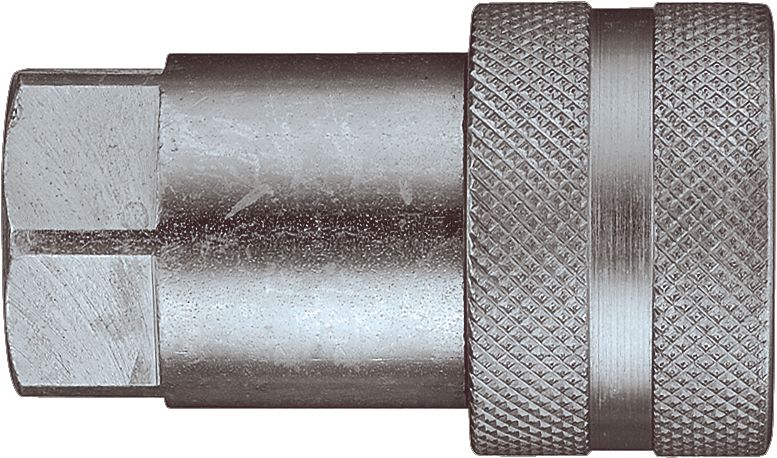

Hydraulic Quick Connect Coupler 3/8" x 3/8-18
(Pack of
1.0)
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 1.04" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 1.33" x 200'
Couldn't load pickup availability
Vacuum Hose Connector Straight 3/16 x 3/16"
Couldn't load pickup availability
Norma Torro European Hose Clamp 3/8 to 5/8"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 1/2-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1" x 1-11-1/2
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Technical Specifications
| Item#: | 28621 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 5675 |
| Body Size | 3/8 " |
| Thread Size | 3/8-18 |
| Thread Style | Female NPT |
| Burst Pressure | 14,500 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Locking Mechanism | 9 Balls |
| Flow | 6 gal/min |
| Length | 2.30 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,350 PSI |
| Hex Size | 0.94 " |
| Maximum Diameter | 1.34 " |
| Coupled Length | 3.01 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
