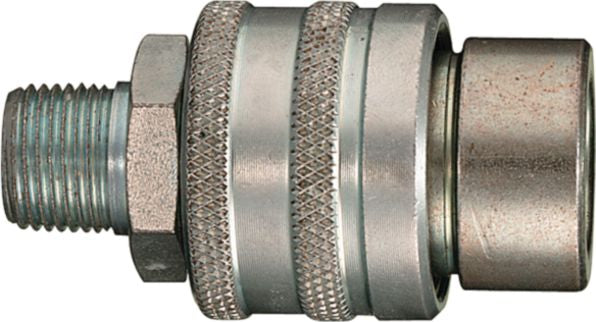

Hydraulic Quick Connect Coupler, Steel, Screw Together, 3/8" x 3/8-18 Male NPTF, 2.58" Length, 10000PSI
(Pack of
1)
SKU:28888 Item#: 28888
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.
• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Frequently Bought Together
Spacer Ring Orange/White
$0.00
Couldn't load pickup availability
Spacer Ring Green
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1-1/4" ORBF X 1" Plug
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
$0.00
Couldn't load pickup availability
6HDP-H6DC
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Product Description
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Technical Specifications
| Item#: | 28888 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Screw Together |
| Body Size | 3/8 " |
| Thread Size | 3/8-18 |
| Thread Style | Male NPTF |
| Burst Pressure | 33,570 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 4.2 gal/min |
| Length | 2.58 " |
| Temperature Range | -4 to 212 F |
| Working Pressure | 10,000 PSI |
| Hex Size | 1 " |
| Maximum Diameter | 1.39 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.51 lb |
