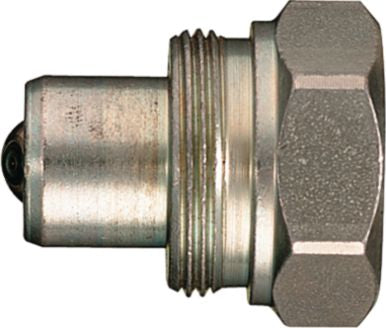

Hydraulic Quick Connect Nipple, Steel, Screw Together, 1/4" x 1/4-18, Female NPTF, 2.36" Length, 10000PSI
(Pack of
1)
SKU:28885 Item#: 28885
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.
• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Frequently Bought Together
Hydraulic Hose Protector 4 x 2-1/2" Yellow
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 8 x 3-1/2" Black
$0.00
Couldn't load pickup availability
Spacer Ring Brown/White
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/4"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 3/8-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Product Description
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Technical Specifications
| Item#: | 28885 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Screw Together |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 35,714 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 3.8 gal/min |
| Length | 1.30 " |
| Temperature Range | -4 to 212 F |
| Working Pressure | 10,000 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 1.12 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
