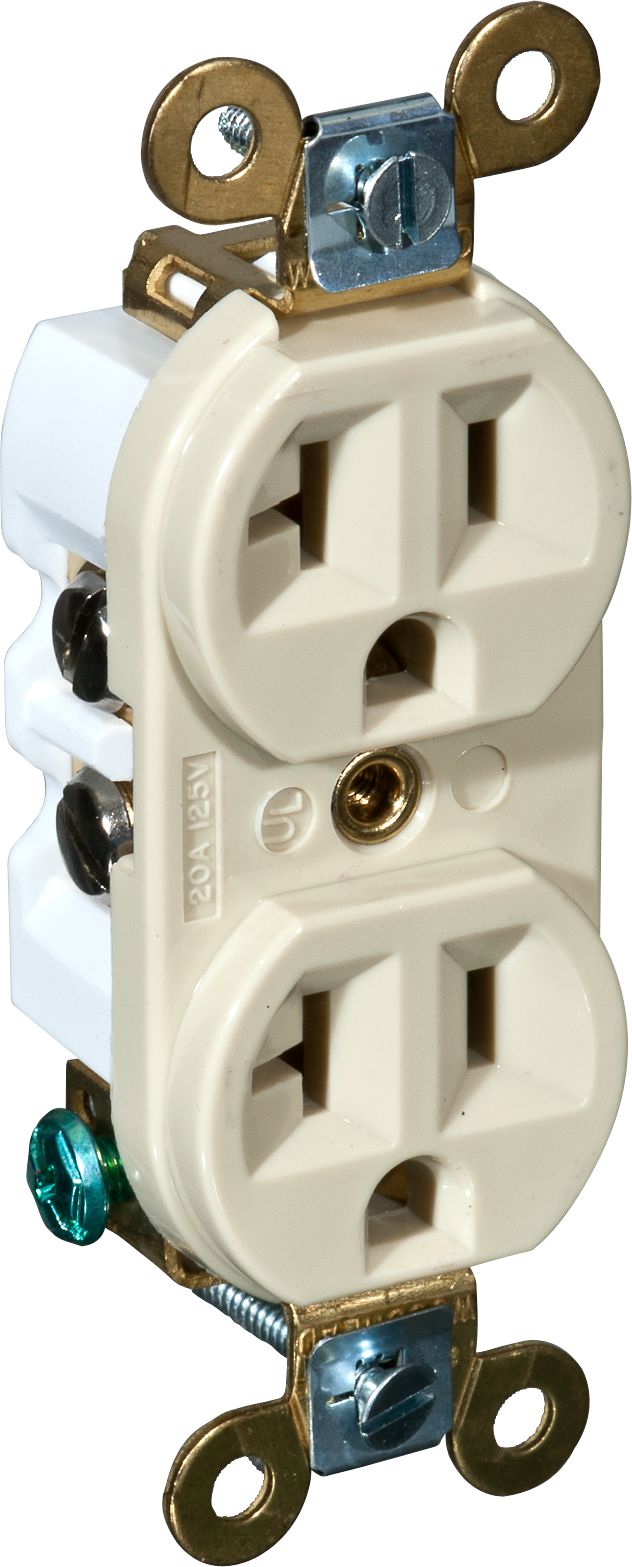

Industrial Duty Duplex Receptacle, 20 Amps, 125 Volts, Ivory, NEMA 5-20R
(Pack of
1)
SKU:87230 Item#: 87230
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body
• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Frequently Bought Together
180-degree Wide Beam Head Light with Side Light
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Locking Connector 2 Pole 3 Wire 20A 250V
$0.00
Couldn't load pickup availability
Industrial Duty Plug 20A 125V L5-20P
$0.00
Couldn't load pickup availability
Toggle Switch AC Single Pole 20A 125/277V Ivory
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Push-Pull Switch SPST 15A 12V Off-On
$0.00
Couldn't load pickup availability
Industrial Duty Duplex Receptacle 15A 125V Brown
$0.00
Couldn't load pickup availability
Toggle Switch SPST 16A at 125V/8A at 250V Off-On
$0.00
Couldn't load pickup availability
Product Description
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Technical Specifications
| Item#: | 87230 |
|---|---|
| Style | Industrial-Duty Straight Blade Duplex Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-20R |
| Color | Ivory |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
