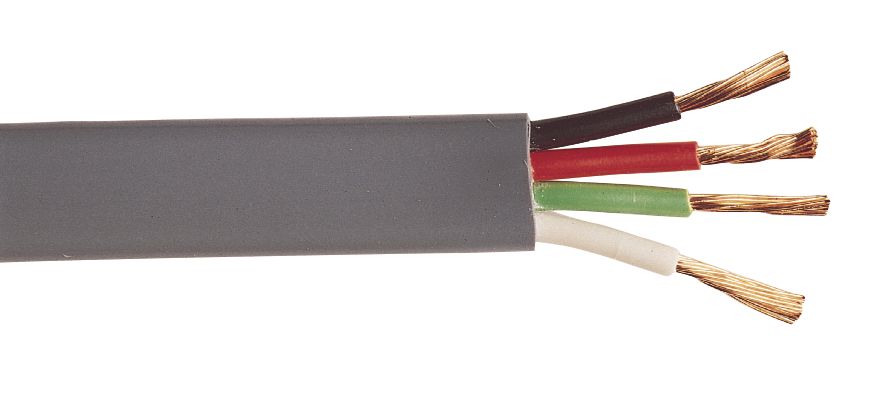

Jacketed Parallel Primary Wire, 14 AWG, 4 Conductor, 100' Length, 60 Volts, White, Black, Green, Red, PVC Insulation
(Pack of
1)
SKU:84001 Item#: 84001
• 100 feet per roll
• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-39
Frequently Bought Together
Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Butt Connector 22 to 24 AWG Clear
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
PVC Hook Up Wire 12 AWG 100' White
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Gray
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Purple
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 2C 100'
Couldn't load pickup availability

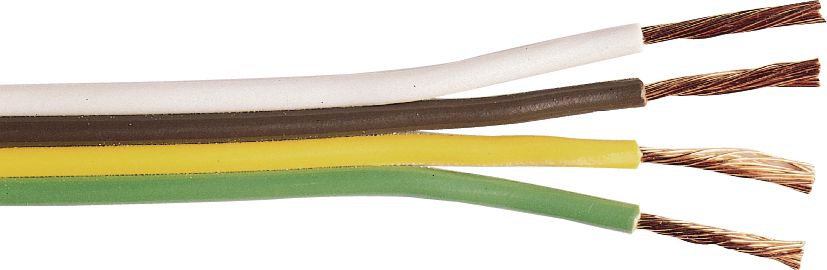

Bonded Parallel Primary Wire 16 AWG 3-Conductor
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 4-Conductor
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 3/8" Body x 3/8" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" MNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Product Description
• 100 feet per roll• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 84001 |
|---|---|
| Style | Jacketed Parallel Primary Wire |
| Wire Gauge | 14 AWG |
| Color | White, Black, Green, Red |
| Number of Conductors | 4 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Volts | 60 |
| Temperature Rating | 221 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | No |
| Weight: | 9.03 lb |
