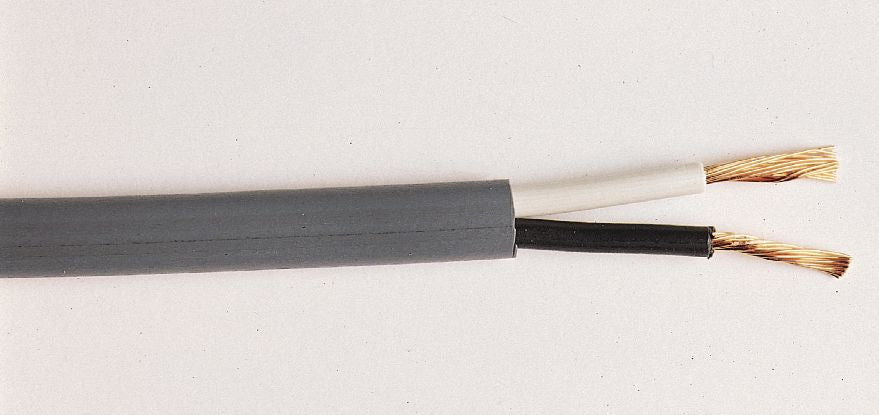

Jacketed Parallel Primary Wire 16 AWG 2C 100'
(Pack of
1.0)
• 100 feet per roll
• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 2-39
Frequently Bought Together
Copper Test Clamp 75A Black
Couldn't load pickup availability
Standard Size Alligator Clip 5A Steel White
Couldn't load pickup availability
Standard Size Alligator Clip 10A Copper Green
Couldn't load pickup availability
Cross Linked Primary Wire 10 AWG 100' Brown
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Orange
Couldn't load pickup availability
Cross Linked Primary Wire Rack/Auto Wire-Stripper
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 3-Conductor
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 4-Conductor
Couldn't load pickup availability
Bonded Parallel Primary Wire 14 AWG 4-Conductor
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/2" Body x 3/8" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/2" Body x 3/4" FNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
• 100 feet per roll• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 5563E |
|---|---|
| Style | Jacketed Parallel Primary Wire |
| Wire Gauge | 16 AWG |
| Color | White, Black |
| Number of Conductors | 2 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Volts | 60 |
| Temperature Rating | 221 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | Yes |
| Weight: | 3.65 lb |
