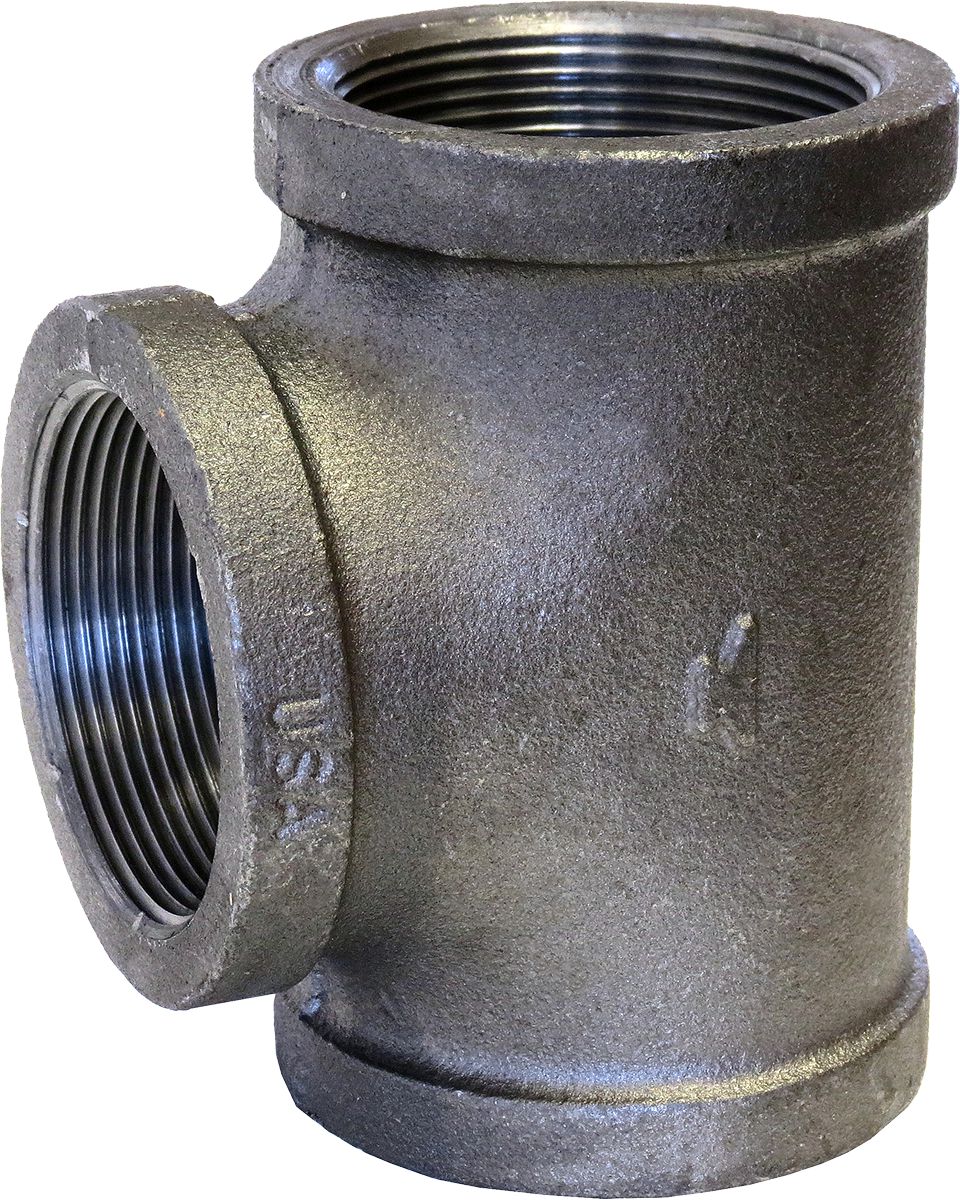

Pipe Tee, Malleable Iron, Black, 1/4-18 x 1/4-18 x 1/4-18, Female NPT x Female NPT x Female NPT, 150PSI
(Pack of
1)
SKU:1637842 Item#: 1637842
150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Frequently Bought Together
Grooved Copper Adapter Coupling, 3" x 3"
Couldn't load pickup availability
F1807 Copper Adapter Coupling, 1/2" x 1/2"
Couldn't load pickup availability
Copper Ball Valve Fitting 1-1/4 "
Couldn't load pickup availability
Pipe Adapter Brass 1/8-27 x 1/4-18
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Street Elbow Malleable Iron 45° 1-1/4 x 1-1/4"
Couldn't load pickup availability
Reducing Coupling Steel 2-11-1/2 x 1-1/4-11-1/2
Couldn't load pickup availability
Pipe Nipple Steel Black 1/8-27 x 1/8-27
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
150 lb. Rated, Black and Galvanized• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Technical Specifications
| Item#: | 1637842 |
|---|---|
| Fitting Type | Pipe |
| Material | Malleable Iron |
| Class | 150 lb. |
| Configuration | Tee |
| Angle | 90 ° |
| Connection Type A x B x C | Female NPT x Female NPT x Female NPT |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 1/4-18 |
| Fitting Dimension C | 1/4-18 |
| Finish | Black |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 40174606 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
