Home Fittings Made In USA Street Elbow Malleable Iron 2-11-1/2 x 2-11-1/2
Fittings

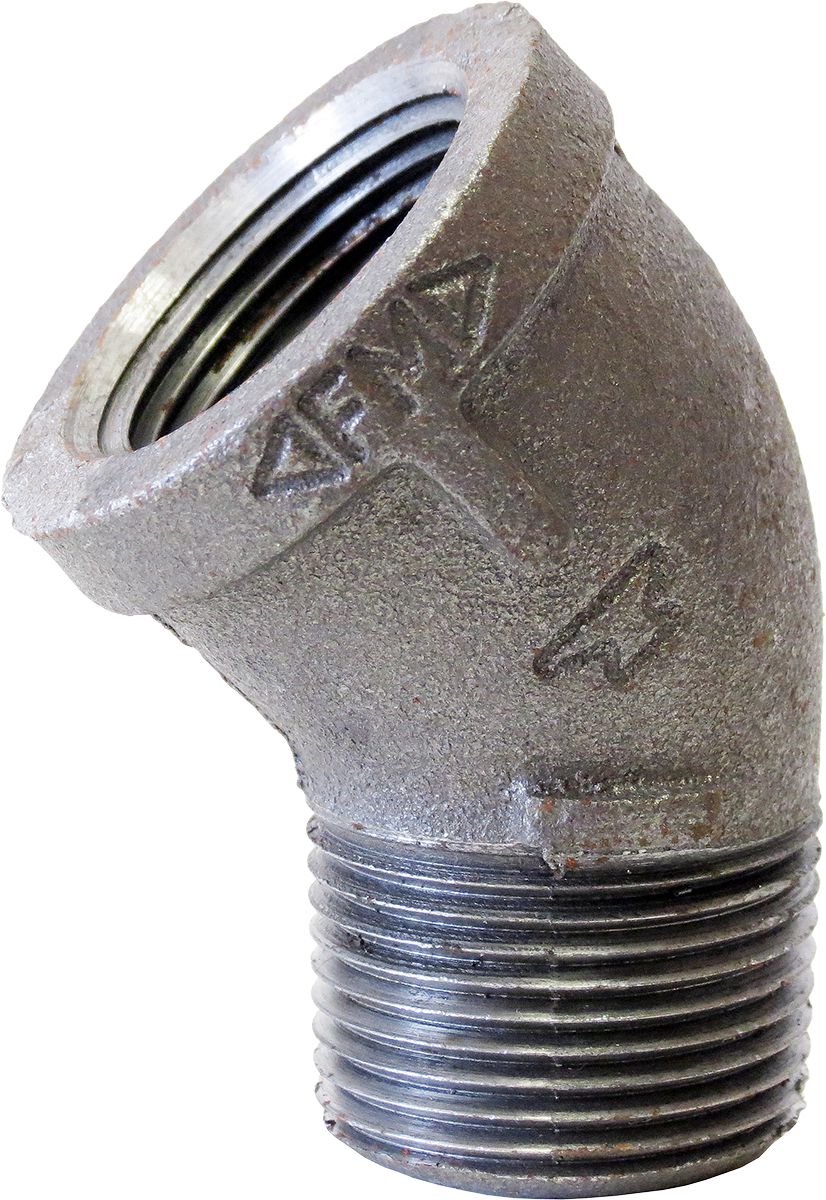

Street Elbow, 45°, Malleable Iron, Black, 2-11-1/2 x 2-11-1/2, Male NPT x Female NPT, 150PSI
(Pack of 1)

Item#: 1637841

Kent Automotive

150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved

Read More
Check Availability

Frequently Bought Together


Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Item#: 5315

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291

Pipe Close Nipple Brass 3/8-18 x 3/8-18

Item#: 5299

Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"

Item#: P28925M01

Miniature Clamp SS 1/8 to 7/16"

Item#: P62057M01

Miniature Clamp SS 3/16 to 5/8"

Item#: P63858M01

Hydraulic Nipple Long 1/8-27 x 1/8-27

Item#: 1338250

Hydraulic Nipple Long 1-11-1/2 x 1-11-1/2

Item#: 1338325

Hydraulic Nipple Long 1/2-14 x 1/2-14

Item#: 1338297

Bumper and Wheel Well Liner Push-Type Retainer

Item#: 1404768

Fender Apron Drive Rivet 8mm Hole

Item#: 1365427

Engine Under Cover Drive Rivet Plastic 7mm Hole

Item#: KT13998

Product Description

150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved

Technical Specifications

Item#: 1637841
Fitting Type Pipe
Material Malleable Iron
Class 150 lb.
Configuration Street Elbow
Angle 45 °
Connection Type A x B Male NPT x Female NPT
Fitting Dimension A 2-11-1/2
Fitting Dimension B 2-11-1/2
Finish Black
Quantity Per Package 1 ea.
UNSPSC #: 40172806
TAA Compliant: Yes
Weight: 1.86 lb
