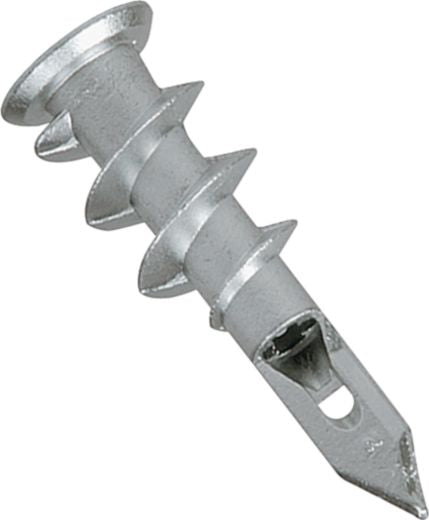

Mini Self-Drilling Wall Anchor, Steel, Die-Cast Zinc Finish, 1-1/4"
(Pack of
25)
SKU:98669 Item#: 98669
• One-piece anchor for mounting to drywall
• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws

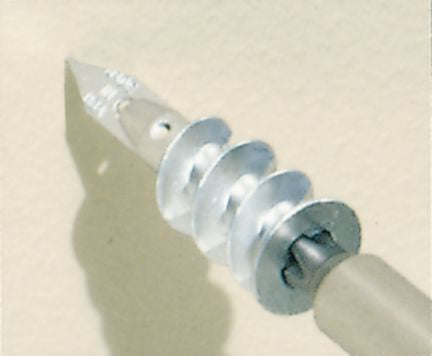

1. Place #2 Phillips screwdriver in recess of E-Z Anchor.

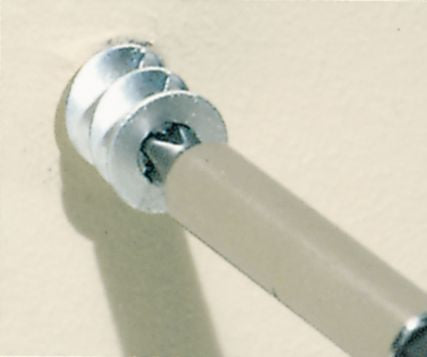

2. Drive E-Z Anchor into wall until flush with surface.

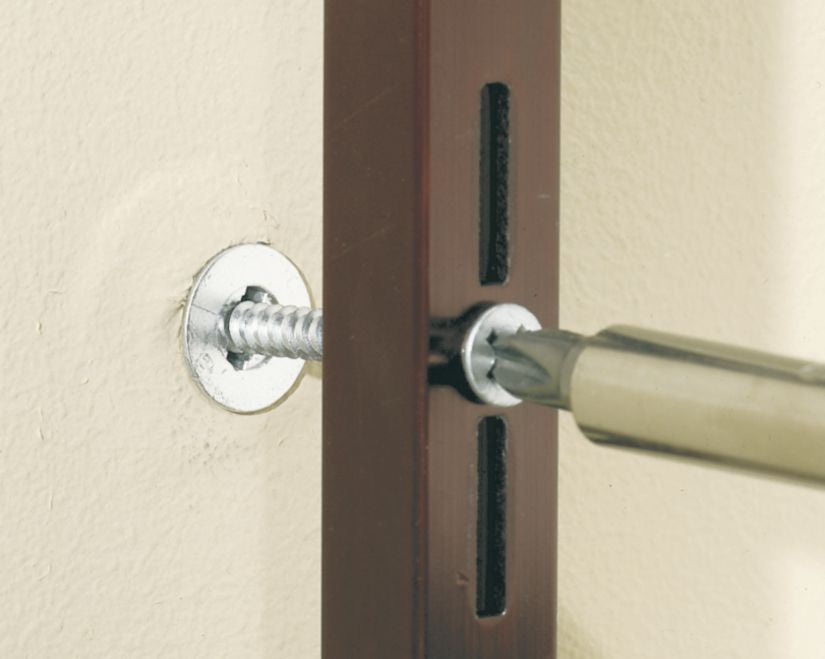

3. Place fixture over anchor, and drive screw with screwdriver.
4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Frequently Bought Together
Masonry Anchor TORX® Star Head Steel 1/4 x 1-3/4"
Couldn't load pickup availability
Sleeve Type Stud Bolt Anchor Steel 5/16 x 3-1/2"
Couldn't load pickup availability
Double Expansion Shield Anchor Alloy Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
SNAPTOGGLE® Toggle Bolt Anchor 3/16-24
Couldn't load pickup availability
E-Z Toggle™ Self-Drilling Wall Anchor
Couldn't load pickup availability
1/4-20 Joggle-A-Toggle Plus
Couldn't load pickup availability
Product Description
• One-piece anchor for mounting to drywall• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws
1. Place #2 Phillips screwdriver in recess of E-Z Anchor.
2. Drive E-Z Anchor into wall until flush with surface.
3. Place fixture over anchor, and drive screw with screwdriver.
4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Technical Specifications
| Item#: | 98669 |
|---|---|
| Type | Wall Anchor |
| Material | Steel |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 50 |
| Shear Ultimate Average Lbs.Drywall Thickness 1 / 2" | 110 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 3 / 8" | 3/8" - 90 Lbs., 1/2" - 110 Lbs., 5/8" - 140 Lbs. lb |
| Pullout Ultimate Average Lbs.Drywall Thickness 3 / 8" | 3/8" - 30 Lbs., 1/2" - 40 Lbs., 5/8" - 50 Lbs. |
| Pullout Ultimate Average Lbs.Drywall Thickness 1 / 2" | 40 |
| Pullout Ultimate Average Lbs. | 50 |
| Shear Ultimate Average | 140 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 5 / 8" | 140 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
