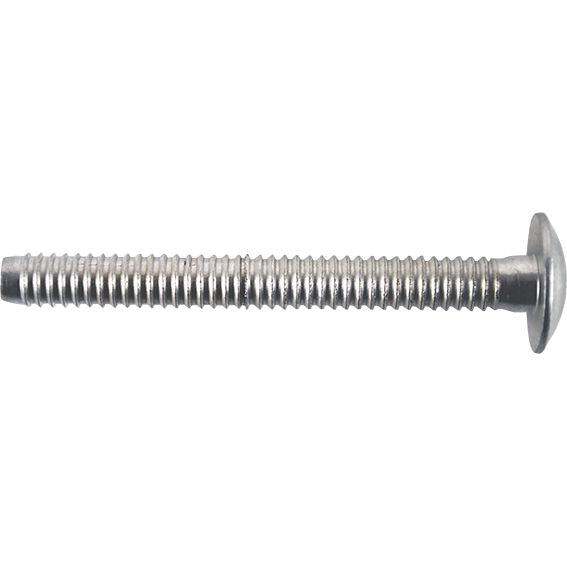

Multi-Grip Rivet Lockbolt, Rivet Head or 98T/Mushroom Head, Aluminum, 3/16" Diameter, 0.062 to 0.625" Grip Range, 1.788" Length
(Pack of
100)
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.
• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-125
Frequently Bought Together
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 140Pcs
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 3/8"
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Lockbolt 3/8"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 3/8"
Couldn't load pickup availability
Nosepiece for 491 Rivet Tool 1/8"
Couldn't load pickup availability
Multi-Grip Rivet Assortment 1200Pcs
Couldn't load pickup availability
Threaded Insert Adapter for 95161 Tool
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Product Description
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Technical Specifications
| Item#: | 1543697 |
|---|---|
| Series | Multi-Grip |
| Diameter | 3/16 " |
| Maximum Hole Size | 0.203 " |
| Grip Range | 0.062 – 0.625 " |
| Head Style | Rivet Head |
| Length | 1.788 " |
| Material | Aluminum |
| Finish | Plain |
| Head Diameter | 0.450 – 0.488 " |
| Head Height | 0.091 – 0.105 " |
| Tensile Strength | 900 lb |
| Shear Strength | 750 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.5071 lb |
