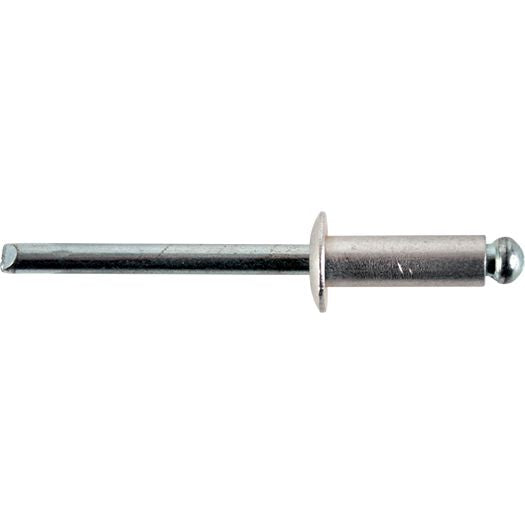

Open End Rivet, Dome Head, Aluminum Body/Steel Mandrel, 1/4" Diameter, 0.02 to 0.25" Grip Range, 0.5" Body Length
(Pack of
100)
SKU:85107 Item#: 85107
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
Catalog page#: 11-108
Frequently Bought Together
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 40mm
Couldn't load pickup availability
Open End Rivet Large Flange Head SS 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Collar Flanged 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 85107 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.020 – 0.250 " |
| Industry Number | 84 |
| Hole Size | 0.257 – 0.261 " |
| Drill Size | F |
| Head Diameter | 0.500 " |
| Head Height | 0.080 " |
| Body Length | 0.500 " |
| Shear Strength | 700 lb |
| Tensile Strength | 920 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.37 lb |
