Home Fasteners Open End Rivet Large Flange Head Aluminum 1/8"
Fasteners

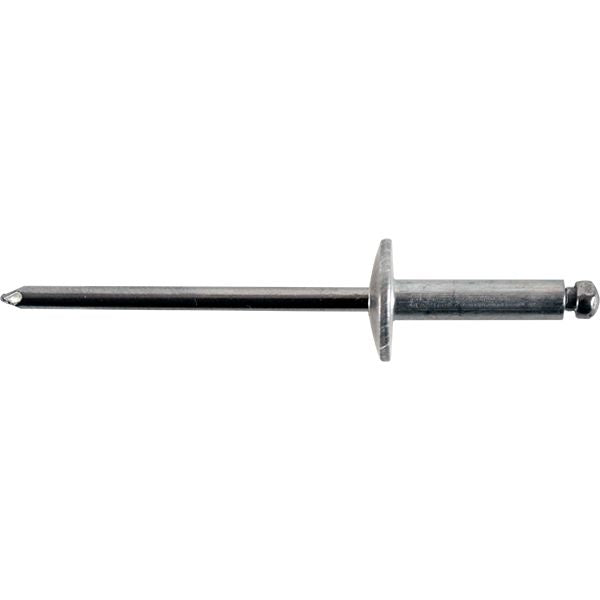

Open End Rivet, Large Flange Head, Aluminum Body/Steel Mandrel, 1/8" Diameter, 0.126 to 0.187" Grip Range, 0.337" Body Length
(Pack of 100)

Item#: 41631

Kent Automotive

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Read More
Check Availability

Catalog page#: 11-109

Frequently Bought Together


Hex Cap Screw Property Class 8.8 M10-1.5 x 40mm

Item#: 61272

DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 16mm

Item#: 59407

Hex Nut Grade 5 Steel 3/8-16

Item#: FA95679

Open End Rivet Dome Head Aluminum 1/4"

Item#: 1543558

Pull Rivet 120° Countersunk Head Aluminum 1/8"

Item#: 1975M01

Open End Rivet Large Flange Head Steel 1/8"

Item#: 1947

Tri-Fold Rivet Dome Head Aluminum 3/16"

Item#: 90485

Tigerbolt® Structural Rivet External Lock 3/16"

Item#: 1543620

Super-Grip Blind and Closed-End Rivet Assortment

Item#: LP454BL

Phillips Truss Head Sheet Metal Screw Steel 15mm

Item#: P13770

Nylon Cable Tie 11-3/4" Black

Item#: KT13409

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Product Description

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Technical Specifications

Item#: 41631
Type Open End
Head Style Large Flange
Material Body / Mandrel Aluminum/Steel
Diameter 1/8 "
Grip Range 0.126 – 0.187 "
Industry Number 43
Hole Size 0.129 – 0.133 "
Drill Size #30
Head Diameter 0.375 "
Head Height 0.065 "
Body Length 0.337 "
Shear Strength 170 lb
Tensile Strength 220 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.28 lb
