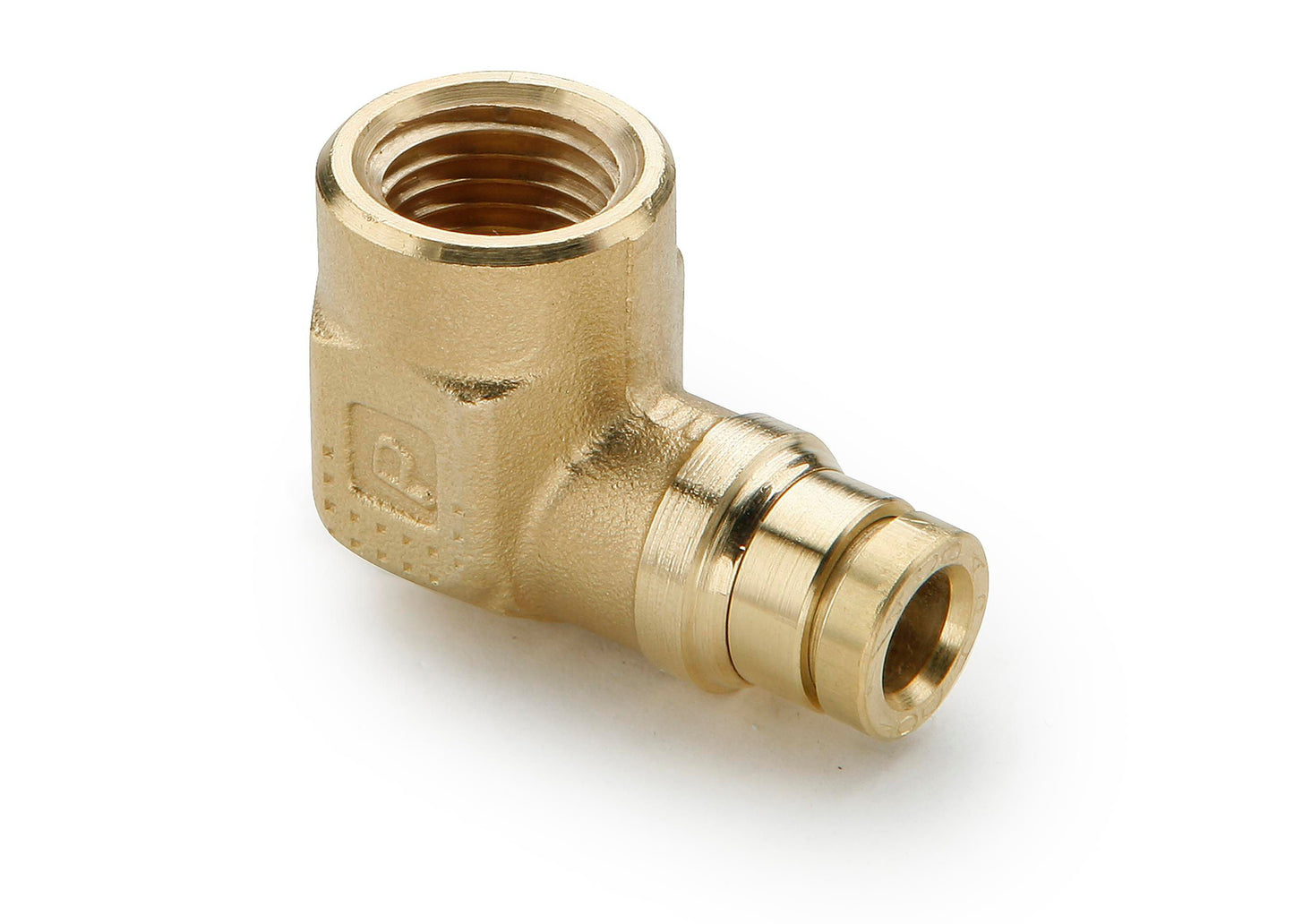

Parker DOT Brass Air Brake Fitting - Push-to-Connect Female Elbow 1/4x1/8
(Pack of
10)
SKU:27212P Item#: 27212P
Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-11
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-8
Frequently Bought Together
Parker DOT PTC Swivel Male Elbow 45 Degrees 3/8x1/4
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/2-14
Couldn't load pickup availability
DOT Union Elbow Nylon 3/16 x 3/16"
Couldn't load pickup availability
Air Brake Tank Filler Valve Brass 1/4-18
Couldn't load pickup availability
Parker DOT Compression - Nylon Bulkhead Union 5/8x5/8
Couldn't load pickup availability
DOT Compression Insert Male Brass 1/2 x 3/8"
Couldn't load pickup availability
DOT Elbow Male 45° Brass 1/2 x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Parker DOT PTC Male Swivel Elbow 90 Degrees 5/8x3/8
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Close Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-11
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.
Technical Specifications
| Item#: | 27212P |
|---|---|
| Fitting Type | Air Brake Fittings - Push-to-Connect |
| Material | Brass |
| Configuration | Female Elbow |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/8 " |
| Parker Reference No. | 170PMTNS-4-2 |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.875 lb |
