Home Air Brake Push-to-Connect Parker DOT PTC Male Branch Tee 3/8x3/8x1/2
Air Brake Push-to-Connect

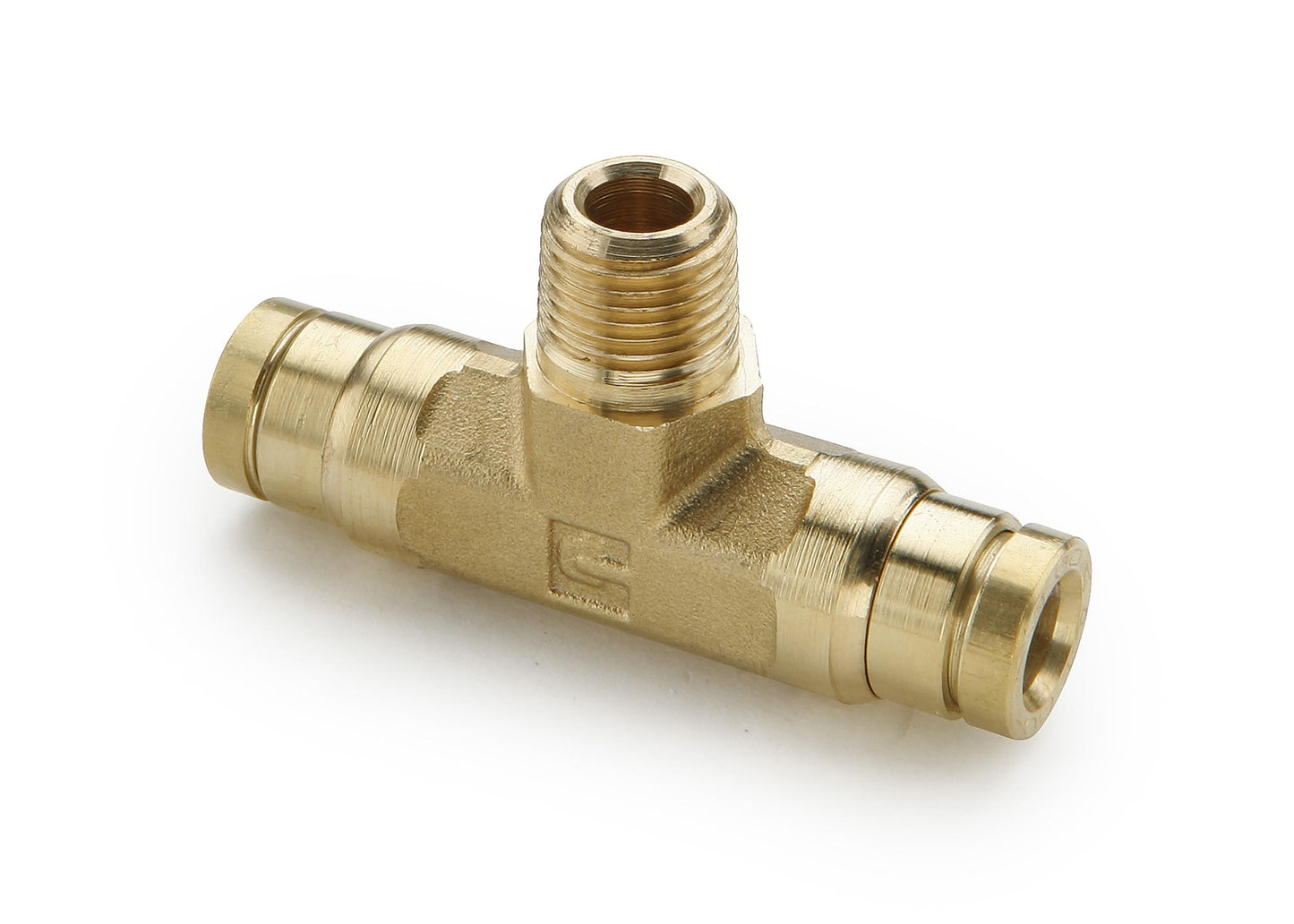

Parker DOT Brass Air Brake Fitting - Push-to-Connect Male Branch Tee 3/8x3/8x1/2
(Pack of 10)

Item#: 1608769

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-14
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-7

Frequently Bought Together


DOT Swivel Elbow Male 45° Brass 1/4 x 1/4-18

Item#: 28970

Parker DOT PTC Male Elbow 90 Degrees 3/4x1/2

Item#: 1608734

DOT Elbow Male 90° Brass 5/8 x 3/8-18

Item#: 28978

DOT Compression Sleeve Brass 3/8"

Item#: 84322

DOT Compression Union Brass 3/8"

Item#: 84254

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794

Hose Clamp 304 SS 9/16 to 1-1/4"

Item#: 86726

DOT Elbow Male Nylon 1/2 x 1/2-14

Item#: 91802

DOT Connector Male Brass 1/2 x 1/2-14

Item#: 27184

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11951

Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"

Item#: P64047M01

DOT Union Brass 1/4 x 1/4"

Item#: 57499

Front Bumper Drive Rivet Plastic 10mm Hole

Item#: KT14285

Front Bumper Drive Rivet Plastic 7mm Hole

Item#: P85438

Metric Indented Hex Head Bolt with 17mm Washer

Item#: KT11580

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-14
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 1608769
Manufacturer Model #: 172PTCNS-6-8
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Male Branch Tee
Connection Type A x B x C Tube x Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 3/8 "
Fitting Dimension C 1/2 "
Parker Reference No. 172PMTNS-6-8
UNSPSC #: 27131600
TAA Compliant: Yes
Weight: 3.56 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
