Home Air Brake Push-to-Connect Parker DOT PTC Male Run Tee 1/2x3/8x3/8
Air Brake Push-to-Connect

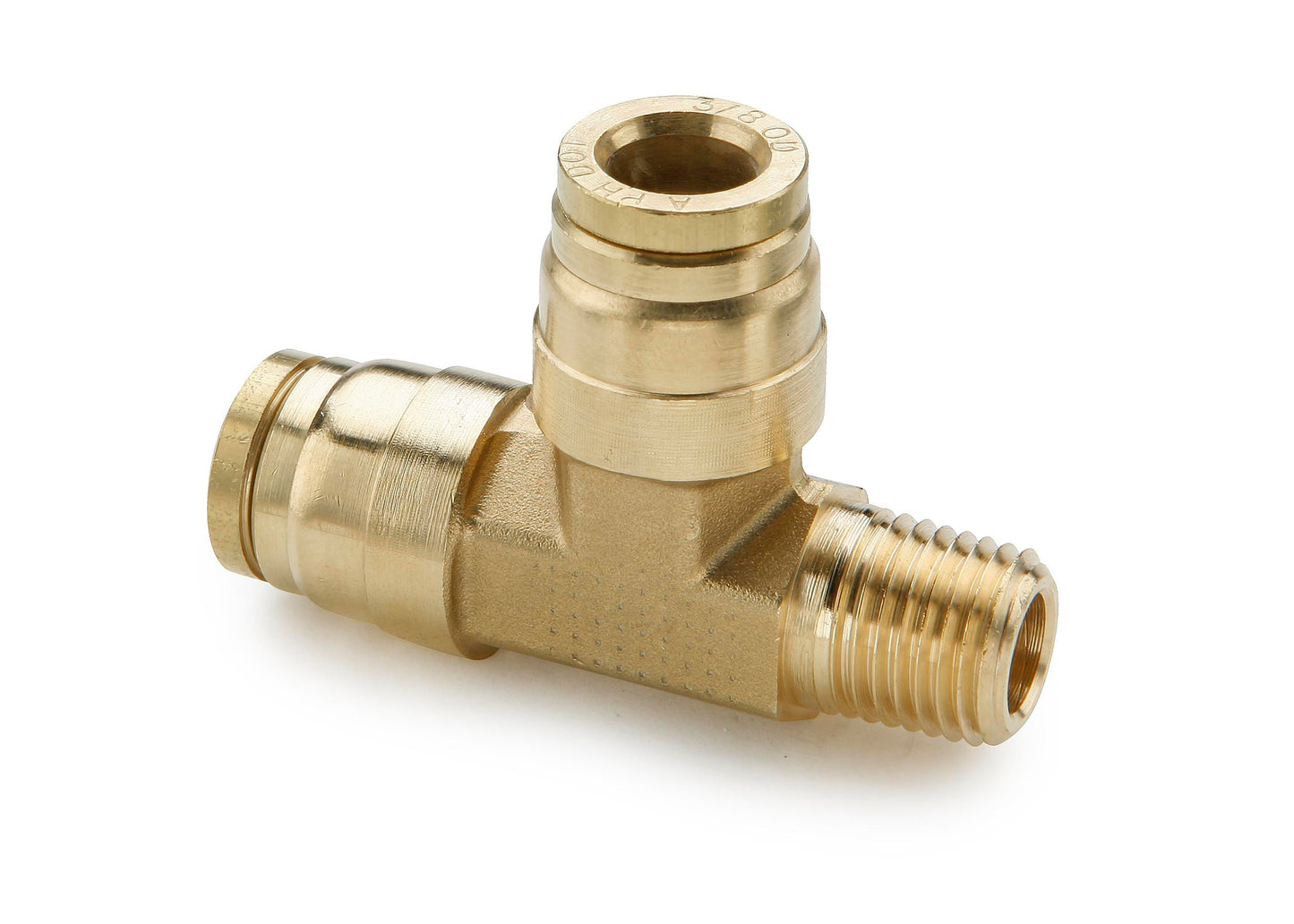

Parker DOT Brass Air Brake Fitting - Push-to-Connect Male Run Tee 1/2x3/8x3/8
(Pack of 10)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-9
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-7

Frequently Bought Together


Parker DOT PTC Female Connector 1/2x1/4

Item#: 1608778
No product placeholder

1869X2.5X1

Item#: 1178229

Parker DOT PTC Female Elbow 3/8x3/8

Item#: 1608782

Pneumatic 50:1 Grease Pump Kit for 120lb Drums

Item#: 1677930

Grease Filler Pump with Universal Loader Adaptors

Item#: 1677928

Hand Operated Bearing Packer

Item#: 1677926

Miniature Clamp SS 7/32 to 5/8"

Item#: 86738

Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"

Item#: P64047M01

Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"

Item#: P28915M01

FLEXAIR 3/8" I.D. x 50' air hose

Item#: 1585091

Push-Button Air Coupler Plug Steel 1/4" x 1/4-18

Item#: KT15129

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"

Item#: P63872M01

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Item#: P86111

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-9
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 1608759
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Male Run Tee
Connection Type A x B x C Pipe x Tube x Tube
Fitting Dimension A 3/8 "
Fitting Dimension B 3/8 "
Fitting Dimension C 1/2 "
Parker Reference No. 171PMTNS-6-8
UNSPSC #: 27131600
TAA Compliant: Yes
Weight: 3.55 lb
