Home Air Brake Push-to-Connect Parker DOT PTC Swivel Male Elbow 45 Degrees 3/8x1/4
Air Brake Push-to-Connect

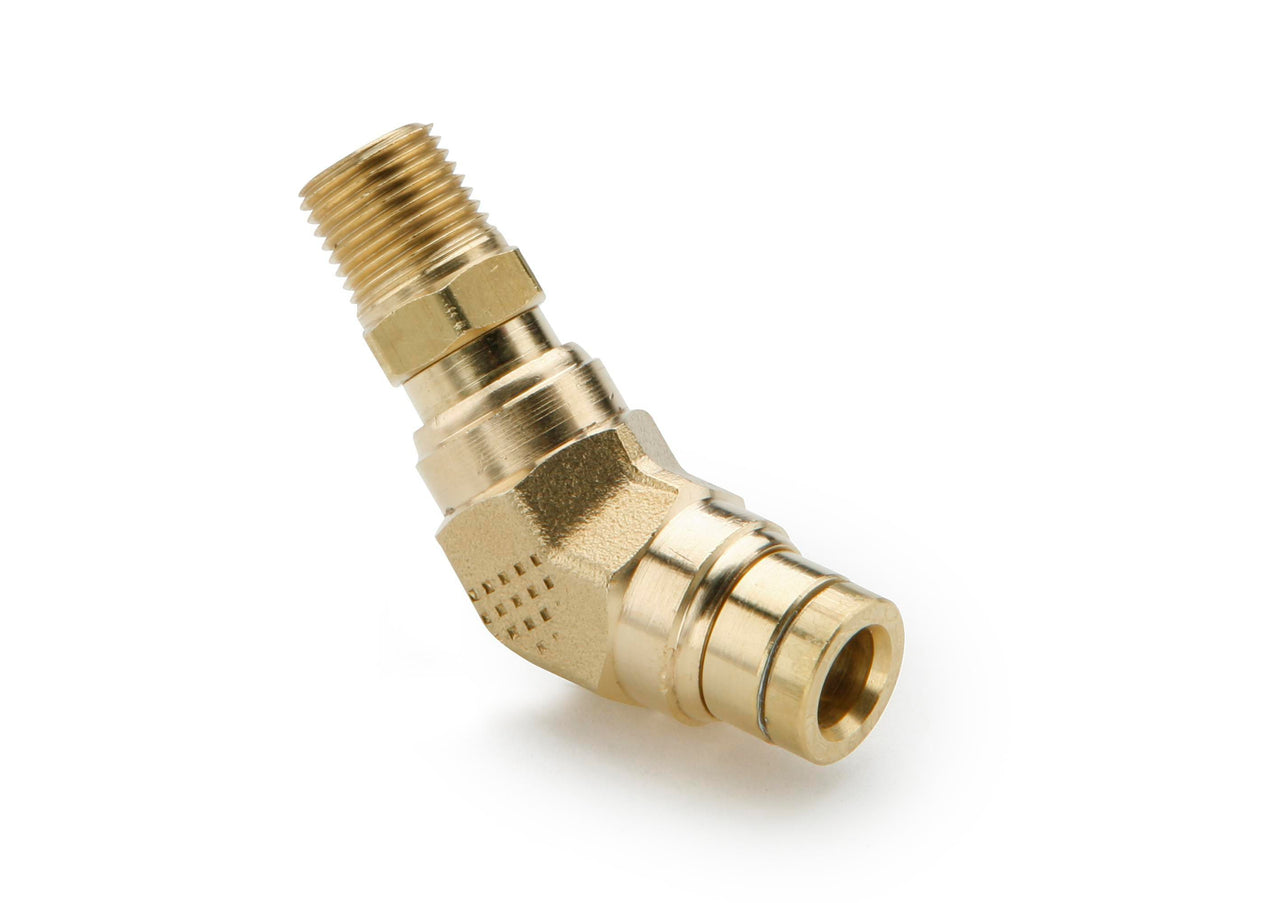

Parker DOT Brass Air Brake Fitting - Push-to-Connect Swivel Male Elbow 45 Degrees 3/8x1/4
(Pack of 10)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-16
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-7

Frequently Bought Together


DOT Elbow Male 90° Brass 1/4 x 1/4-18

Item#: 57510

DOT Elbow Male 90° Brass 1/4 x 1/8-27

Item#: 57509

Parker DOT PTC Female Connector 1/2x1/4

Item#: 1608778

Dual Pistol/Lever Handle Grease Gun

Item#: 1677916

Grease Gun Holder

Item#: 1677921

Pneumatic 50:1 Grease Pump Kit for 120lb Drums

Item#: 1677930

Worm Gear Hose Clamp Assortment with Rack

Item#: KL115

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794

Miniature Clamp SS 7/32 to 5/8"

Item#: 86738

Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"

Item#: P64107M01

FLEXAIR 3/8" I.D. x 50' air hose

Item#: 1585091

Push-Button Air Coupler Plug Steel 1/4" x 1/4-18

Item#: KT15129

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-16
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 28971P
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Swivel Male Elbow 45 Degrees
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 1/4 "
Parker Reference No. 179PMT-6-4
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 1.735 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
