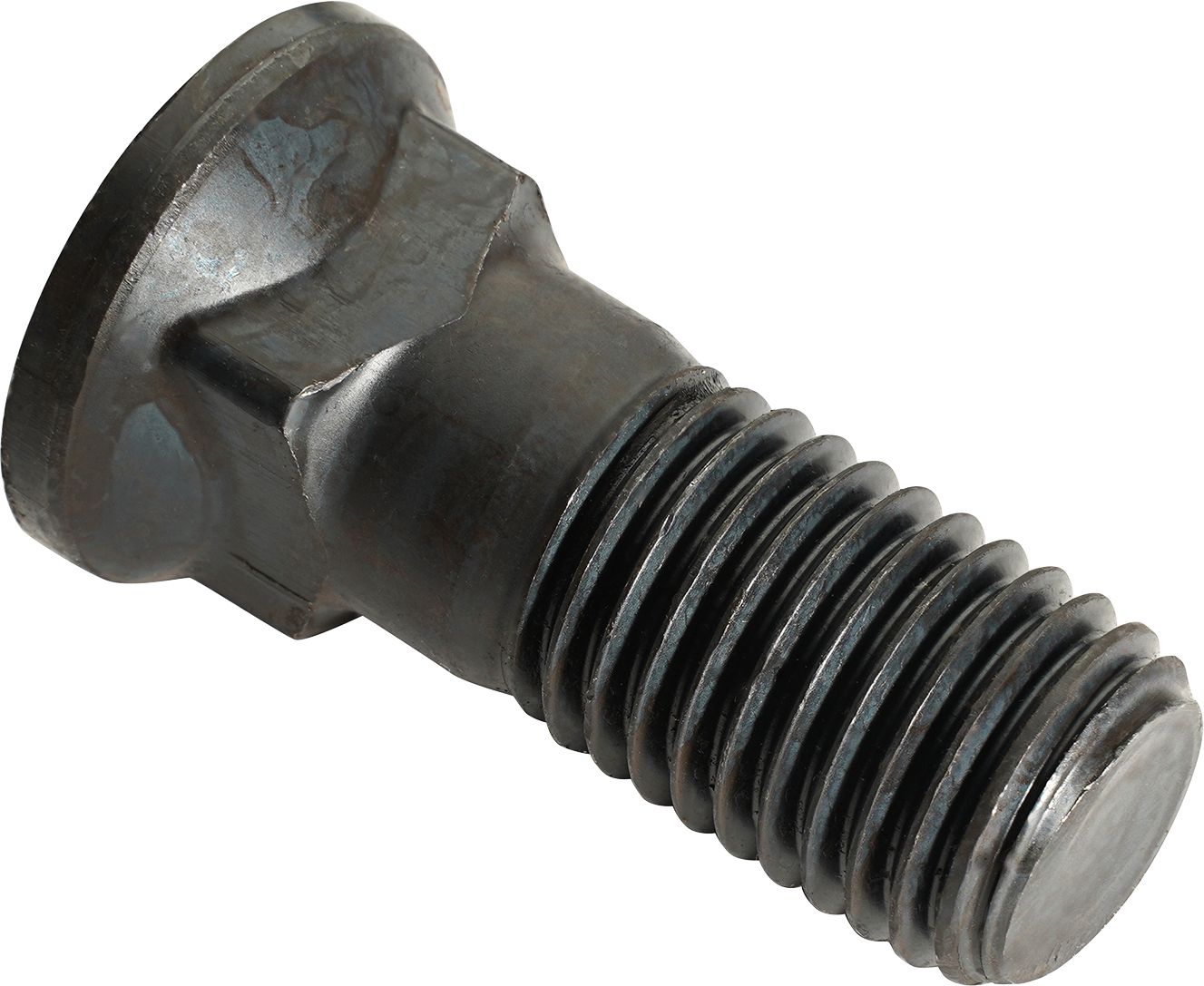

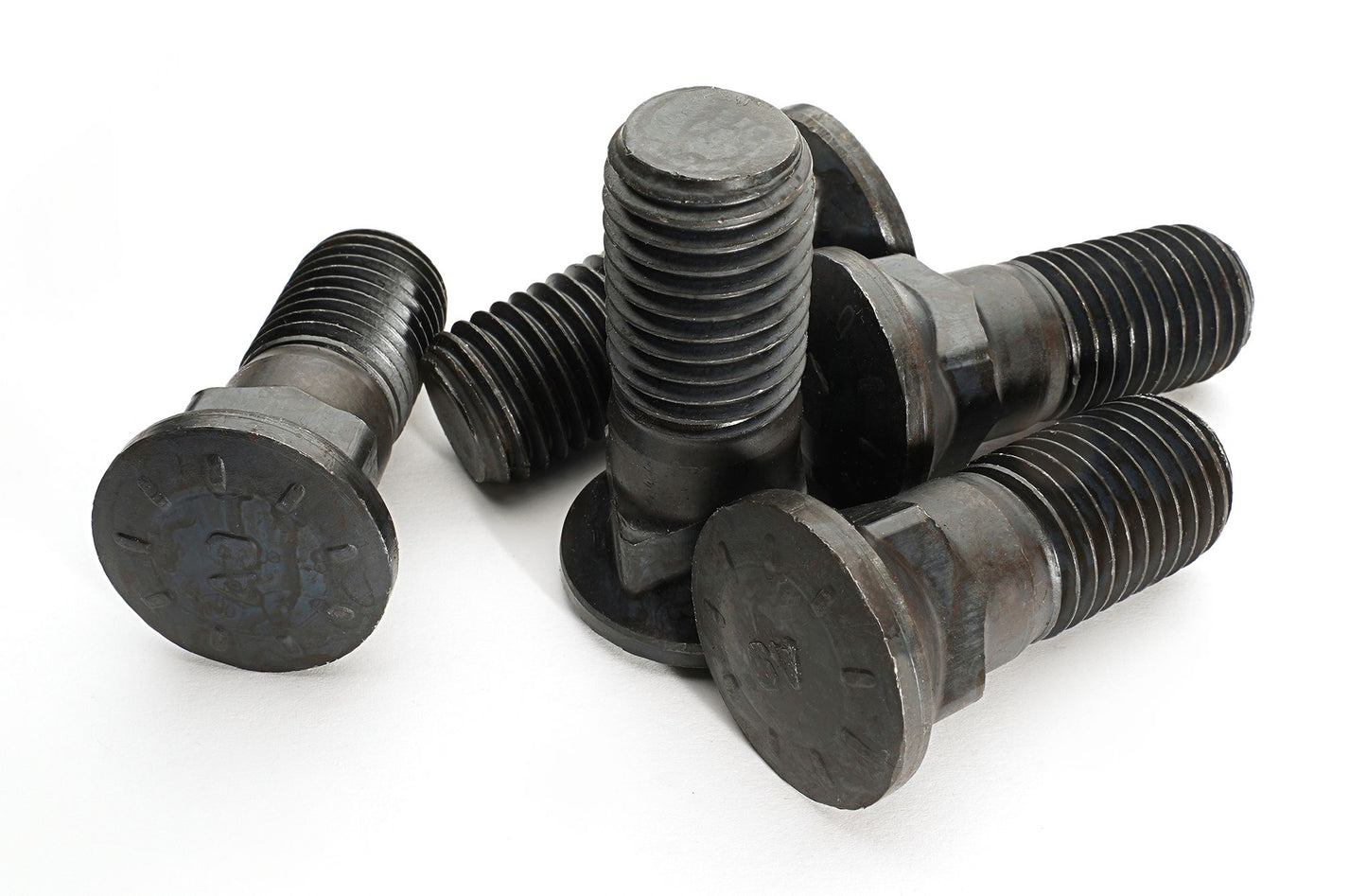

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 7/8-9 x 2-1/2"
(Pack of
5)
SKU:10721 Item#: 10721
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Frequently Bought Together
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 20mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
$0.00
Couldn't load pickup availability
Plow Bolt Grade 8 3/4-10 x 2-3/4"
$0.00
Couldn't load pickup availability
Plow Bolt High Strength A9 1-1/4-7 x 4-1/2"
$0.00
Couldn't load pickup availability
Plow Bolt High Strength A9 3/4-10 x 3-1/4"
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10721 |
|---|---|
| Type | Plow Bolt |
| Diameter | 7/8 " |
| Thread Pitch | 9 |
| Thread | Coarse |
| Length | 2-1/2 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 2-1/2 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 2.38 lb |
