Portable Air/Hydraulic Pump Package with Press
(Pack of 1)

SKU:63683 Item#: 63683

Danfoss®

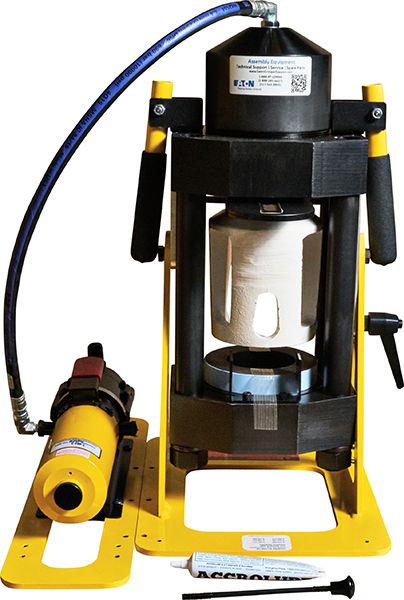

Make factory-type hose assemblies anywhere with portable T-480 Pump systems that include both the press and pump. Expect factory-quality custom hose assemblies, and ensure that vital operations remain productive. Choose from three systems: Coll-O-Crimp® Press T-480 combined with electric pump, hand pump or air/hydraulic pump.
• Overall press capacity from 3/16" single fiber braid through 1-1/4" 6-spiral hose (additional tooling required)
• Compact size: 10-1/2"W x 22-1/2"H x 14"D
• Note: To crimp 1/4" to 1-1/4" one- and two-braid Coll-O-Crimp® hose, order Adapter Ring T-420-25, Item No. 63689, and corresponding T-400 Series spacer rings and U-Series collets
• To crimp 1/2" to 1-1/4" 4-spiral Coll-O-Crimp® hose, order 430 U-Series collets*
Tooling Kit contents:
1/2" 430U-Series Collet T-420-4CN, Item No. 63690
3/4" 430U-Series Collet T-420-5CN, Item No. 63691
1" 430U-Series Collet T-420-6CN, Item No. 63692
1-1/4" 430U-Series Collet T-420-7CN, Item No. 63693
Black Spacer Ring T-400-10, Item No. 51384
Silver Spacer Ring T-400-11 Item No. 51385
Yellow Spacer Ring T-400-62, Item No. 56269
Adapter Ring for T-400 U-Series Collets T-420-25, Item No. 63689
1/4" U-Series Collet T-400-2C, Item No. 51379
3/8" U-Series Collet T-400-3C, Item No. 51380
1/2" U-Series Collet T-400-4C, Item No. 51381
3/4" U-Series Collet T-400-5C, Item No. 51382
1" U-Series Collet T-400-6C, Item No. 51383

Check Availability

Usually Ships: Today

While Supplies Last

Quantity

Frequently Bought Together

Product Description

Technical Specifications

Item#:	63683
Manufacturer Model #:	T-480-AH
Category	Crimper System
Description	Portable Air/Hydraulic Pump with Press
Quantity Per Package	1.0000
UNSPSC #:	27121500
TAA Compliant:	Yes
Weight:	135.0 lb
