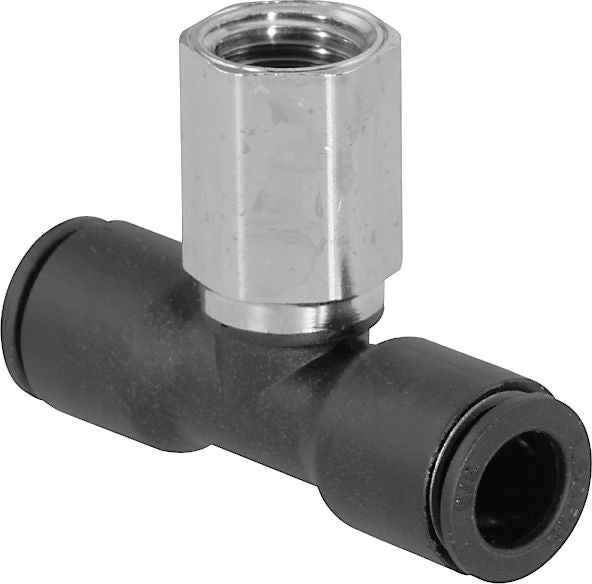

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2 x 3/8", Tube x Tube x Female NPT, 150 PSI Working Pressure
(Pack of
2)
SKU:86820 Item#: 86820
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/16 x 3/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 1/2 to 29-32"
$0.00
Couldn't load pickup availability
Push-to-Connect x Metric Connector Brass 4 mm x M7
$0.00
Couldn't load pickup availability
Union Tee, 1/4" Tube
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 5/16" (8 mm) x M12x1.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86820 |
|---|---|
| Configuration | Female Branch Tee |
| Tube Size | 1/2 " |
| Thread Size | 3/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 22 mm |
| Thread Length | .65 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.35 lb |
