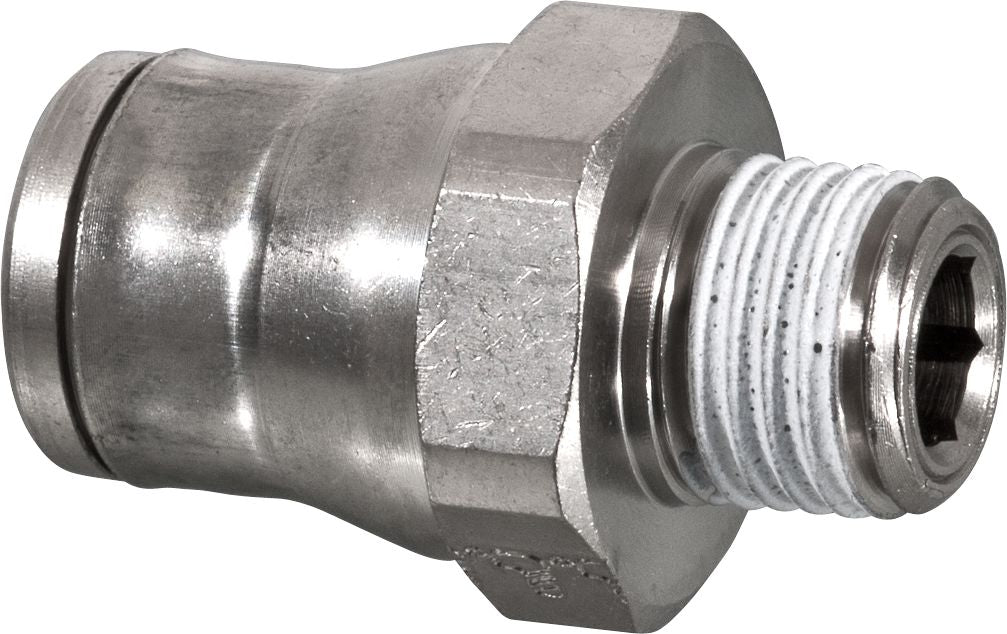

Push-to-Connect Connector, Nickel-Plated Brass 1/2 x 1/4", Tube x Male NPT, 280 PSI Working Pressure
(Pack of
3)
SKU:17865 Item#: 17865
Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/4 x 1/4 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect x Metric Connector Brass 6 mm x M12
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Product Description
Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 17865 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Male Connector |
| Tube Size | 1/2 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 22 mm |
| Internal Hex Size | 7 mm |
| Thread Length | 0.43 " |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.25 lb |
