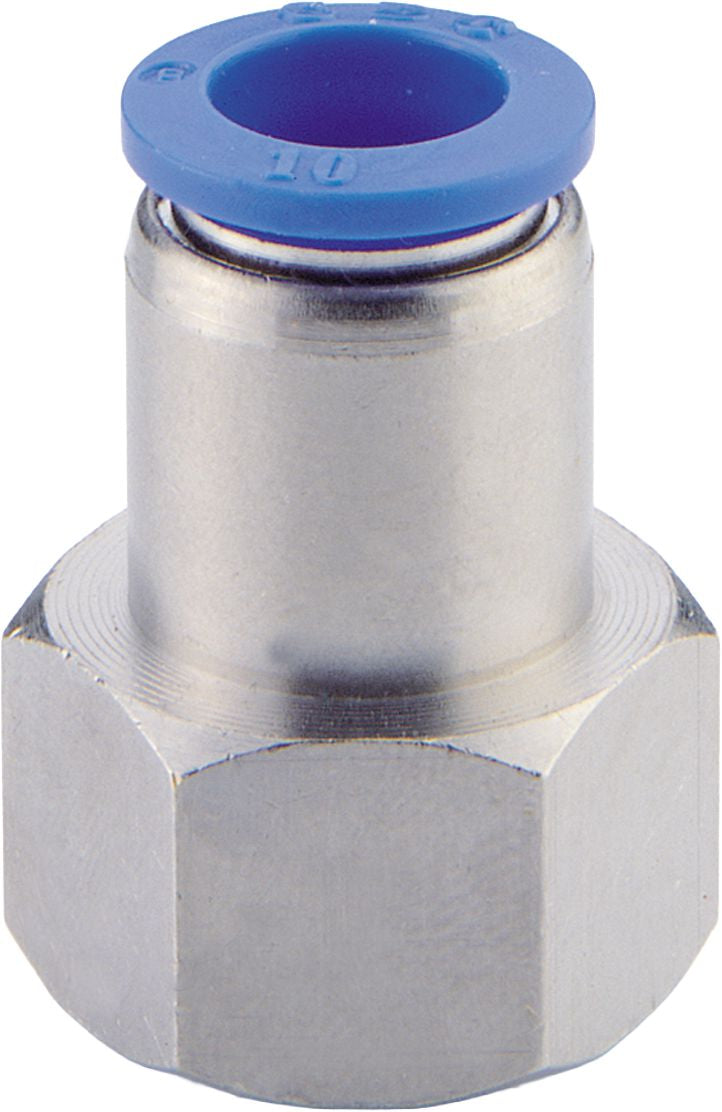

Push-to-Connect Straight Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4", Tube x Female NPT, 150 PSI Working Pressure
(Pack of
3)
SKU:86804 Item#: 86804
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/16 x 3/16 x 1/8"
$0.00
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Street Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/4" NPT
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 1/4 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect x Metric Connector Brass 4 mm x M7
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86804 |
|---|---|
| Configuration | Straight Female Connector |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 16 mm |
| Thread Length | .55 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
