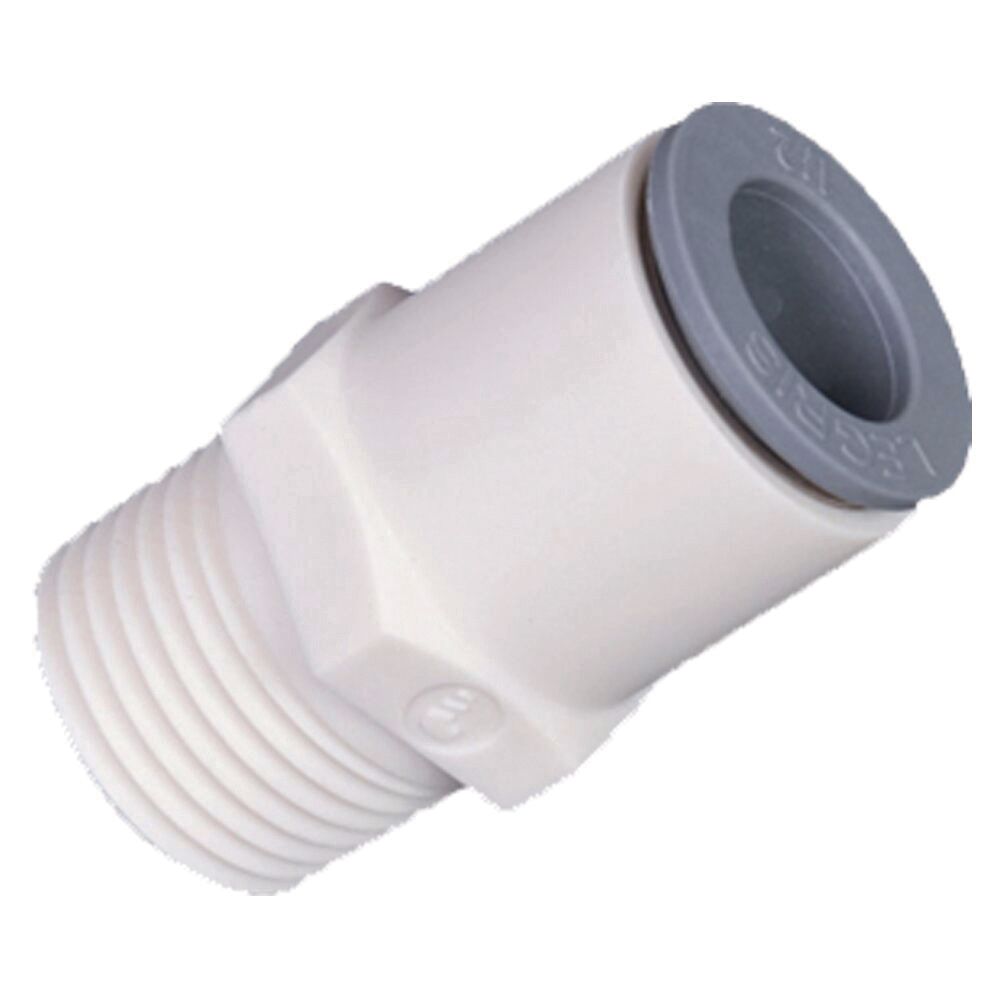

Push-to-Connect Connector, Polyoxymethlene, 3/8 x 1/4", Tube x Male NPTF, 232 PSI Working Pressure
(Pack of
10)
SKU:1593571 Item#: 1593571
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Union, PBT Resin, 3/16 x 3/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Straight Union, Nickel-Plated Brass, 6 x 6mm
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
$0.00
Couldn't load pickup availability
Reducing Coupling Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/8-27 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 5/32" x 5/32" x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1593571 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 3/8 " |
| Thread Size | 1/4 " |
| Thread Style | NPTF |
| Material | Polyoxymethlene |
| Wrench Size | 3/4 " |
| Internal Hex Size | 1/4 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.125 lb |
