Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8", Tube x Female NPT, 150 PSI Working Pressure
(Pack of
2)
SKU:86813 Item#: 86813
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

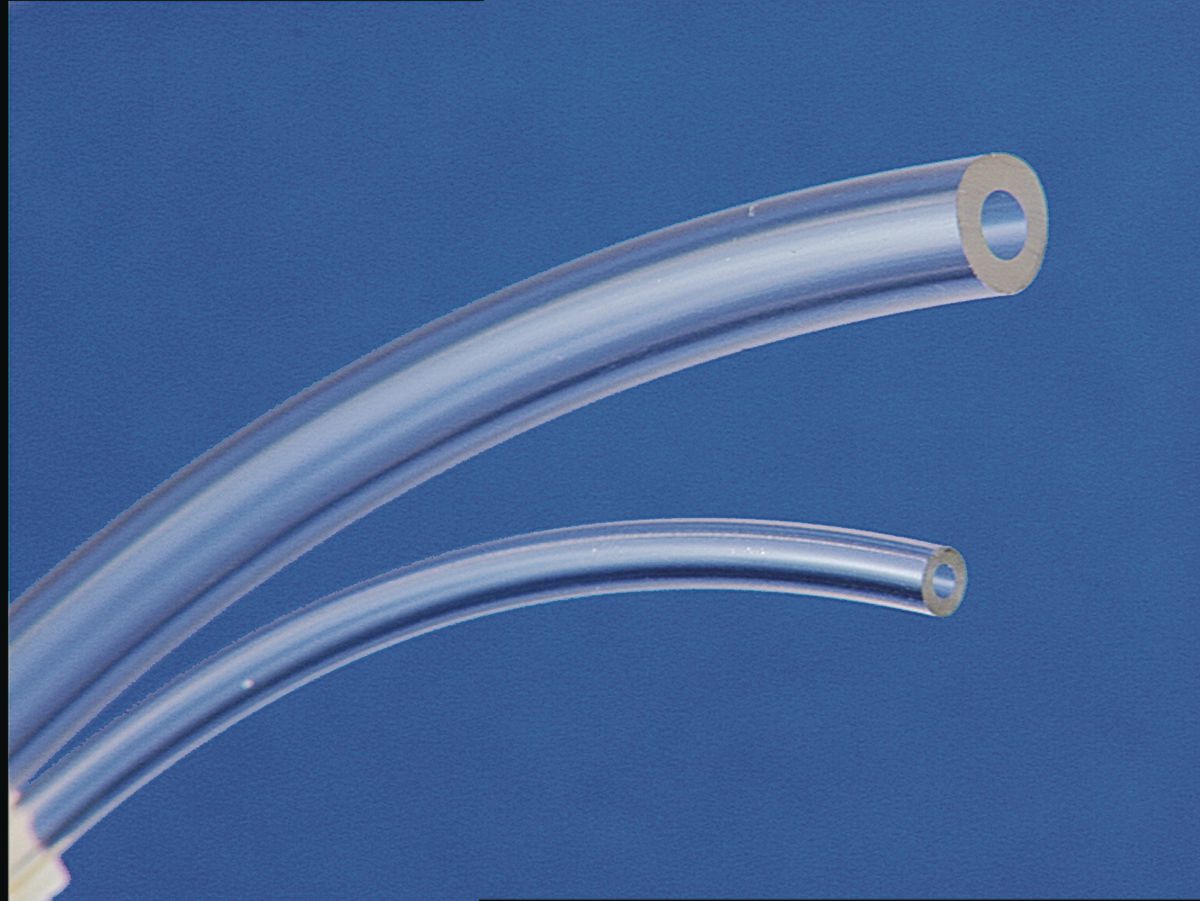

PVC Industrial Tubing, 1/2 ID x 100' Clear
$0.00
Couldn't load pickup availability
PVC Industrial Tubing, 3/8" ID x 100' Clear
$0.00
Couldn't load pickup availability
PVC Industrial Tubing, 1/4" ID x 100' Clear
$0.00
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 5/32" (4 mm) x M7x1
$0.00
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/4 x 1/8"
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86813 |
|---|---|
| Configuration | Female Elbow |
| Tube Size | 1/2 " |
| Thread Size | 3/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 22 mm |
| Thread Length | .65 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
