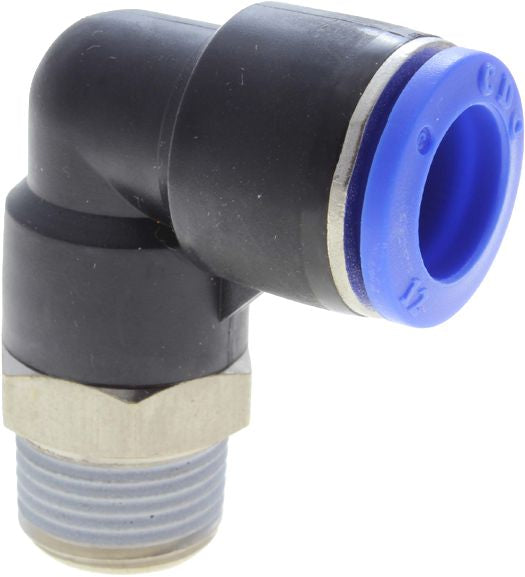

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin , 1/4" x 10-32, Tube x Male UNF, 150 PSI Working Pressure
(Pack of 5)

SKU:62202 Item#: 62202

Kent Automotive

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Push-to-Connect Elbow, Polyoxymethlene, 1/4 x 1/4"

Item#: 1637590

Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 1/8"

Item#: DY41726824

Push-to-Connect Union, PBT Resin, 5/16 x 5/16"

Item#: DY41726250

Pipe Nipple Steel Galvanized Schedule 40 Welded 1-1/4-11-1/2 x 5 "

Item#: 81965

Pipe Street Tee Brass 1/4-18 x 1/4-18 x 1/4-18

Item#: 86665

Pipe Bushing Brass 3/4-14 x 1/2-14

Item#: 86662

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"

Item#: P63872M01

Miniature Clamp SS 3/16 to 5/8"

Item#: P63858M01

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

Meter Out Flow Control Regulator, PBT Resin, 1/8" x 10-32

Item#: 17890P

Push-to-Connect Branch Tee, PBT Resin, 12 x 12mm x 3/8"

Item#: 54363P

Push-to-Connect Union Elbow, Nickel Plated Brass, 5/32 x 5/32"

Item#: 28329P

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Front/Rear Bumper Push-Type Retainer Nylon 20mm

Item#: KT13321

Bumper Clip Push-Type Retainer Nylon 18mm

Item#: KT12848

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 62202
Configuration Male Elbow
Tube Size 1/4 "
Thread Size 10-32 "
Thread Style UNF
Material Nickel-Plated Brass/PBT Resin
Wrench Size 11 mm
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.08 lb
