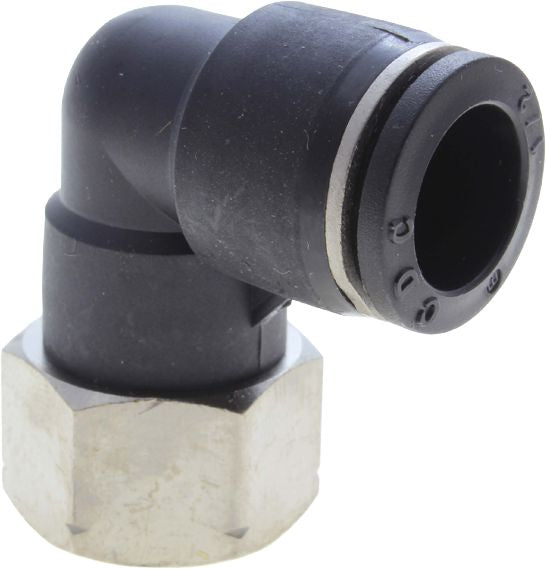

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32 (4mm) x 1/8", Tube x Female NPT, 150 PSI Working Pressure
(Pack of
3)
SKU:86808 Item#: 86808
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

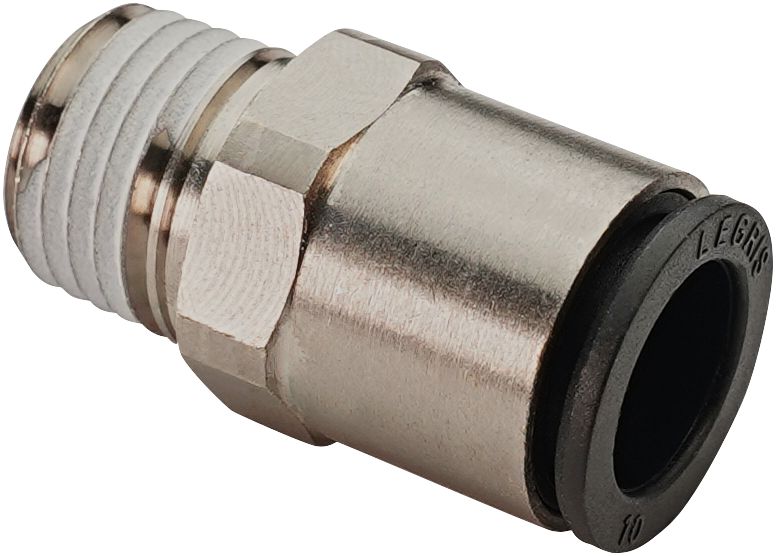

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/4"
$0.00
Couldn't load pickup availability

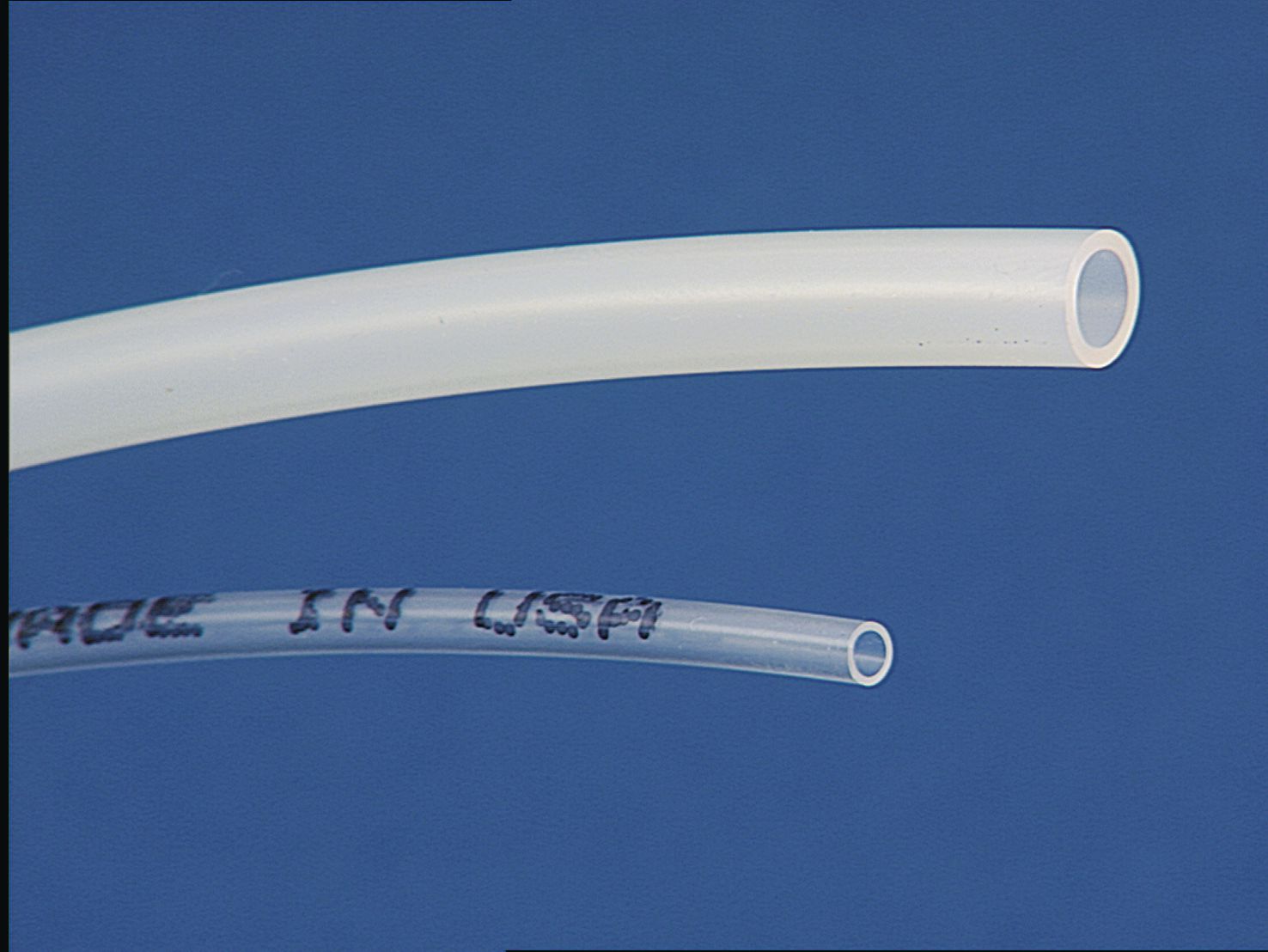

Nylon Tubing 3/8" OD x 100' Translucent
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/8"
$0.00
Couldn't load pickup availability
Push-To-Connect Fitting, LF3000, Male Connector, 6mm Tube x 1/4 NPT
$0.00
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 12 x 12 x 12 mm
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86808 |
|---|---|
| Configuration | Female Elbow |
| Tube Size | 5/32" (4mm) |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 13 mm |
| Thread Length | .37 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
