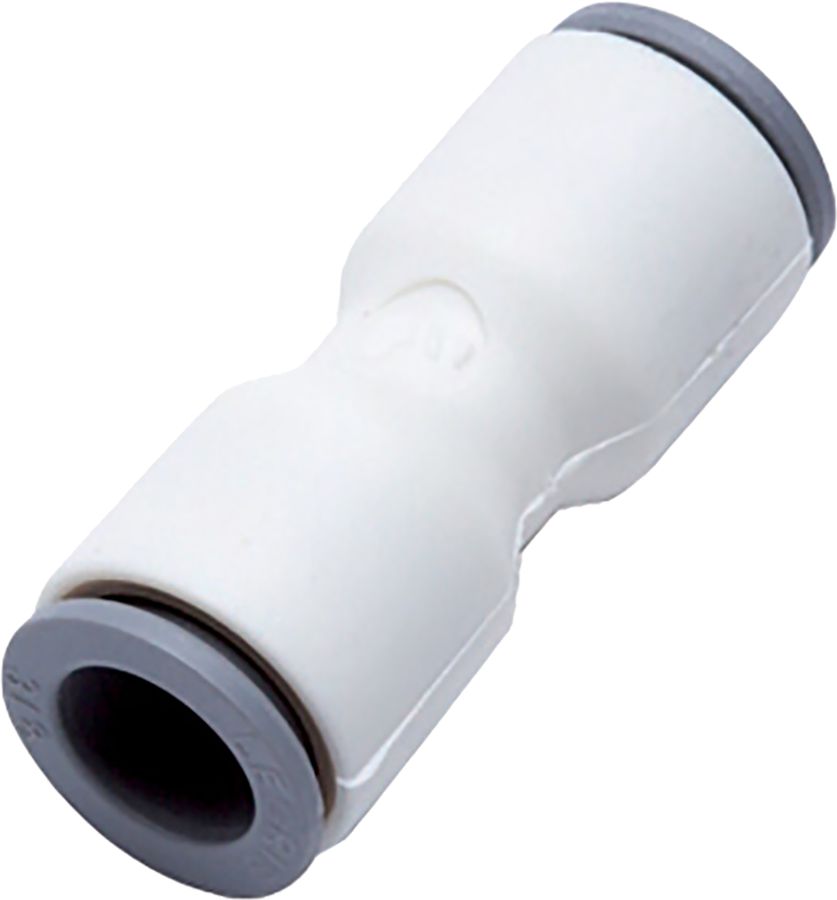

Push-to-Connect Union Connector, Polyoxymethlene, 5/16 x 5/16" (8mm), Tube x Tube, 232 PSI Working Pressure
(Pack of
1)
SKU:1637592 Item#: 1637592
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Nipple Steel Galvanized Schedule 40 Welded 1-1/4-11-1/2 x 5 "
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 12 x 12 x 12 mm
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/4 x 1/4 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1637592 |
|---|---|
| Style | 25 |
| Configuration | Tube to Tube |
| Tube Size | 5/16 " |
| Material | Polyoxymethlene |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183110 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
