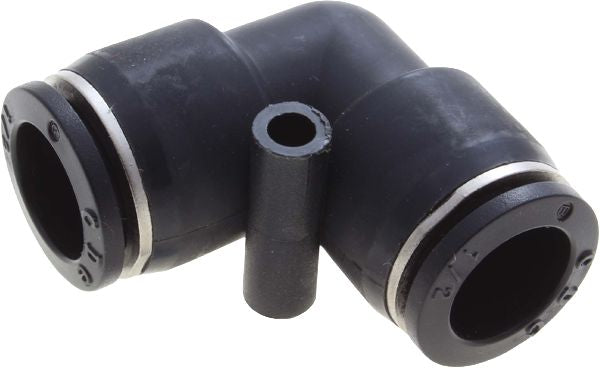

Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4", Tube x Tube, 150 PSI Working Pressure
(Pack of
5)
SKU:86791 Item#: 86791
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/4 x 1/4 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect x Metric Connector Brass 6 mm x M12
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86791 |
|---|---|
| Configuration | Union Elbow |
| Tube Size | 1/4 " |
| Material | Nickel-Plated Brass/PBT Resin |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.02 lb |
