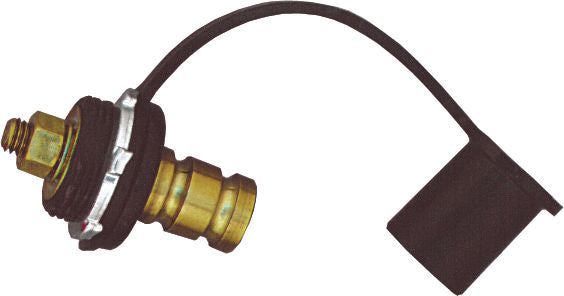

Remote Battery Jumper Terminal, Black, Negative Polarity, Brass, 3/8" Stud Size, 16 TPI
(Pack of
1)
SKU:52824 Item#: 52824
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle
• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Crimping Tool Replacement Die Size 4/0-250
Couldn't load pickup availability
Battery Hold Down J-Bolt 20 TPI 9"
Couldn't load pickup availability
Crimping Tool Replacement Die Size 8-2
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 1/4"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 3/0 AWG Orange 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 4/0 AWG Purple 3/8"
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Technical Specifications
| Item#: | 52824 |
|---|---|
| Style | Remote Battery Jumper |
| Type | Terminals |
| Color | Black |
| Polarity | Negative |
| Description | Jumper Terminal - Negative |
| UNSPSC #: | 78181500 |
| TAA Compliant: | Yes |
| Weight: | 0.38 lb |
