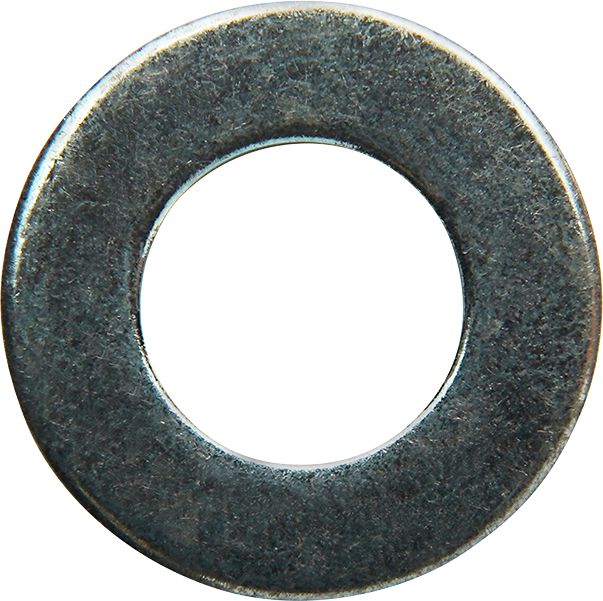

Flat Washer, SAE, Thru-Hardened, Steel, Yellow Zinc Finish, 0.281" ID, 0.625" OD, 0.051 to 0.08" Thickness, 1/4"
(Pack of
100)
The SAE Flat Washer delivers the reliable performance mechanics and auto body shops demand for critical fastening applications. Constructed from 1050 annealed HRPO and hardened to Rc 38/45, this automotive washer resists dishing, bellying, and cracking under heavy loads while distributing pressure evenly across soft materials. The zinc-plated finish with yellow chromate coating provides superior corrosion resistance, ensuring long-lasting durability in harsh automotive environments. With SAE-specified dimensions for a precise fit on standard fasteners, this washer prevents pull-through failures and surface damage while maintaining tight connections that won't loosen under vibration.
• 1050 annealed HRPO*
• Hardened and drawn to Rc 38/45
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
*Hot rolled, pickled and oiled steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-29
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
Couldn't load pickup availability
SAE Flat Washer Grade 2 Steel 1-1/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 2"
Couldn't load pickup availability
SAE Flat Washer Grade 2 Steel 1-3/8"
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
DIN 127B Lock Washer Steel M20
Couldn't load pickup availability
SAE Flat Washer Low Carbon Steel 1/4"
Couldn't load pickup availability
Fender Washer Standard Steel 1-1/4"
Couldn't load pickup availability
Product Description
The SAE Flat Washer delivers the reliable performance mechanics and auto body shops demand for critical fastening applications. Constructed from 1050 annealed HRPO and hardened to Rc 38/45, this automotive washer resists dishing, bellying, and cracking under heavy loads while distributing pressure evenly across soft materials. The zinc-plated finish with yellow chromate coating provides superior corrosion resistance, ensuring long-lasting durability in harsh automotive environments. With SAE-specified dimensions for a precise fit on standard fasteners, this washer prevents pull-through failures and surface damage while maintaining tight connections that won't loosen under vibration.• 1050 annealed HRPO*
• Hardened and drawn to Rc 38/45
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
*Hot rolled, pickled and oiled steel
Technical Specifications
| Item#: | FA88435 |
|---|---|
| Nominal Size | 1/4 " |
| Grade | Thru-Hardened |
| Finish | Yellow Zinc |
| Type | Flat Washer |
| I.D. | 0.281 " |
| O.D. | 0.625 " |
| Thickness | 0.051 – 0.080 " |
| Material | Carbon Steel |
| Pattern | SAE |
| Specifications | ANSI B18.22.1 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | No |
| Weight: | 0.37 lb |
