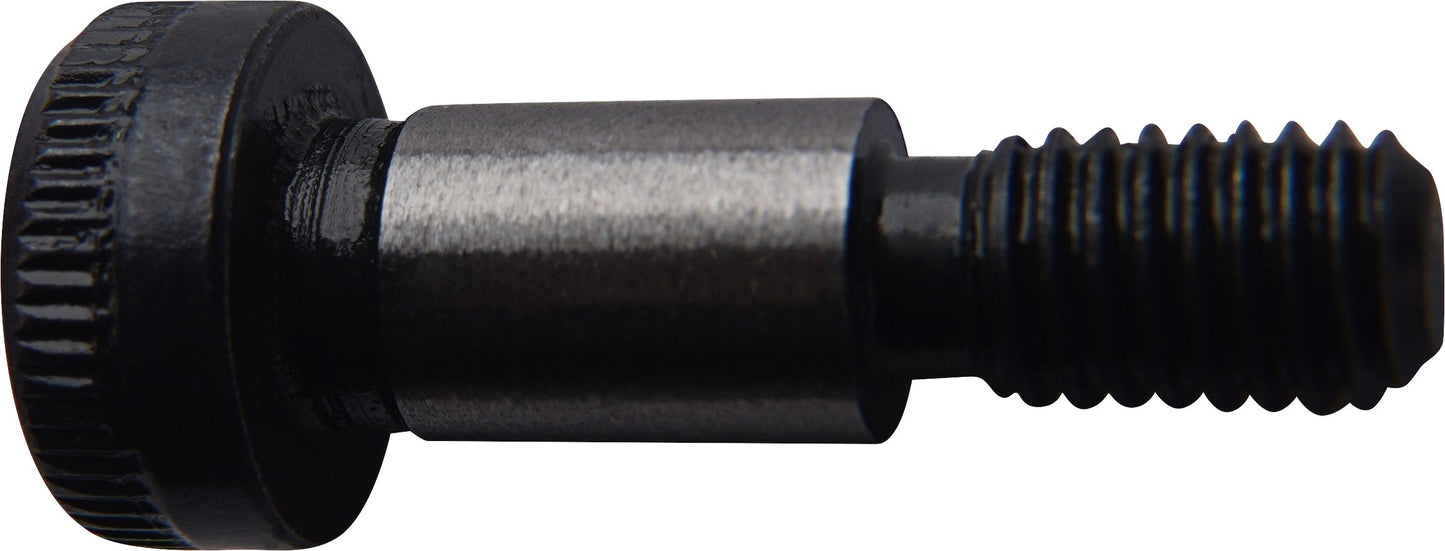

Socket Head Shoulder Screw, Grade 12.9, Alloy Steel, Black Oxide Finish, M12 Shoulder Diameter and 25mm Length, M10-1.5 Thread
(Pack of
5)
SKU:56373 Item#: 56373
• Polished steel shoulder
• Black oxide head and threads
• Heat-treated alloy steel
• Meets ASME/ANSI B18.3.4M, 1986 ISO 7379, 9481 Grade 12.9
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Item#: 28680
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 41612
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Item#: 1405793
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Item#: KT13984
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Socket Head Shoulder Screw Steel 5/8 x 2-1/4"
Item#: 85727
$0.00
Couldn't load pickup availability
Socket Head Shoulder Screw Steel 5/8 x 3"
Item#: 85729
$0.00
Couldn't load pickup availability
Socket Head Shoulder Screw Steel 3/8 x 3-3/4"
Item#: 55320
$0.00
Couldn't load pickup availability
Button Head Socket Cap Screw Steel #10-32 x 1/4"
Item#: 54801
$0.00
Couldn't load pickup availability
Button Head Socket Cap Screw SS #10-32 x 5/8"
Item#: 19866
$0.00
Couldn't load pickup availability
Button Head Socket Cap Screw Steel M3-0.5 x 10mm
Item#: 87520
$0.00
Couldn't load pickup availability
Product Description
• Polished steel shoulder• Black oxide head and threads
• Heat-treated alloy steel
• Meets ASME/ANSI B18.3.4M, 1986 ISO 7379, 9481 Grade 12.9
Technical Specifications
| Item#: | 56373 |
|---|---|
| Shoulder Diameter | M12 |
| Shoulder Length | 25 mm |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Thread Diameter | M10 |
| Thread Pitch | 1.5 mm |
| Thread Length | 16.40 mm |
| Key Size | 6 mm |
| Tensile Strength | 1,220 MPa |
| UNSPSC #: | 31161517 |
| TAA Compliant: | No |
| Weight: | 0.53 lb |
