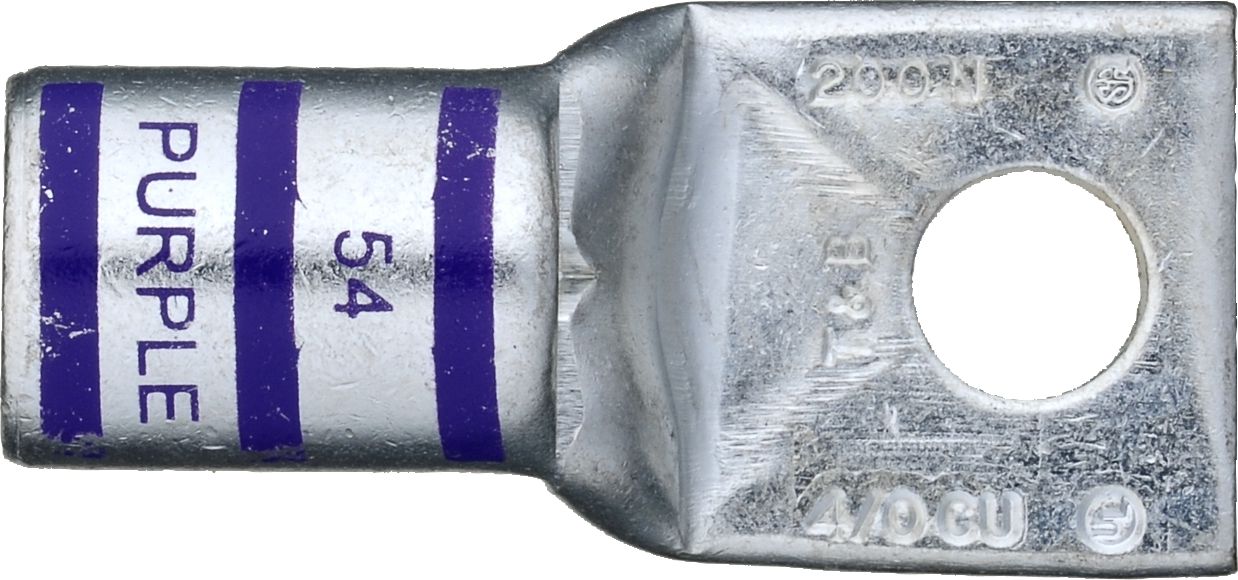

Standard One-Hole Lug, 4/0 AWG, Purple, 3/8" Stud Size
(Pack of
6)
SKU:89508 Item#: 89508
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Frequently Bought Together
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
$0.00
Couldn't load pickup availability
Industrial Connector- 6 Gauge
$0.00
Couldn't load pickup availability
Color Coded Motor Pigtail Connector 8 AWG Red
$0.00
Couldn't load pickup availability
One-Hole Lug 2/0 AWG Black
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89508 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 4/0 AWG |
| Size Navy | 200 |
| Size Weld | 3/0 |
| Stud Bolt Size NEMA Drilling | 3/8 " |
| Color | Purple |
| Installation Tool 86473 (No. of Crimps Required) | 2 |
| Installation Tool 89555 (No. of Crimps Required) | 2 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.58 lb |
