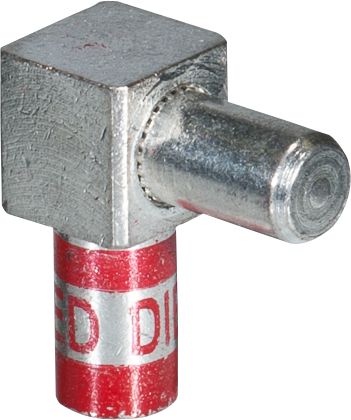

Color Coded Motor Pigtail Connector, 8 AWG, Male, Copper, Tin Plate, Red, 1 Body Size
(Pack of
5)
SKU:94378 Item#: 94378
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Butt Connector 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Rechargeable Neck Light
$0.00
Couldn't load pickup availability
Butt Connector 22 to 24 AWG Clear
$0.00
Couldn't load pickup availability
Long Barrel Two-Hole Lug 1 AWG Green
$0.00
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 2/0 AWG
$0.00
Couldn't load pickup availability
Standard One-Hole Lug 2/0 AWG Black
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Leak Seal Resealant Black 11fl.oz
$0.00
Couldn't load pickup availability
Counterbore Screw 7/16-14 x 2-1/2"
$0.00
Couldn't load pickup availability
Rivet 10 Items 205Pcs
$0.00
Couldn't load pickup availability
Leak Seal Resealant Black 11fl.oz
$0.00
Couldn't load pickup availability
Counterbore Screw 7/16-14 x 2-1/2"
$0.00
Couldn't load pickup availability
Rivet 10 Items 205Pcs
$0.00
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94378 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Male |
| Wire Gauge | 8 AWG |
| Color | Red |
| Body Size | 1 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.02 lb |
