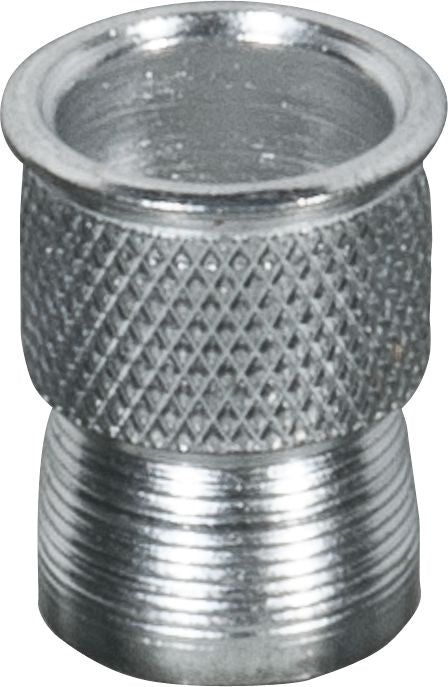

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, M4-0.7, 9.4mm Length, 6.35mm Hole
(Pack of
25)
SKU:85895 Item#: 85895
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• Tin-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-94
Frequently Bought Together
Lockbolt Collar Standard Flange Aluminum 3/16"
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M12
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Standard Threaded Insert #6-32
$0.00
Couldn't load pickup availability
Threaded Insert for Soft Material 3/8-16
$0.00
Couldn't load pickup availability
Standard Threaded Insert 5/16-18
$0.00
Couldn't load pickup availability
Threaded Insert Installation Tool
$0.00
Couldn't load pickup availability
Conversion Kit #6-32
$0.00
Couldn't load pickup availability
Conversion Kit #8-32
$0.00
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• Tin-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85895 |
|---|---|
| Diameter | M4 |
| Thread Pitch | 0.7 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 6.35 mm |
| Pilot Drill Size | 1/4 " |
| Pilot Drill Number | 84733 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 6.83 mm |
| Body Diameter | 6.34 mm |
| Length | 9.40 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
