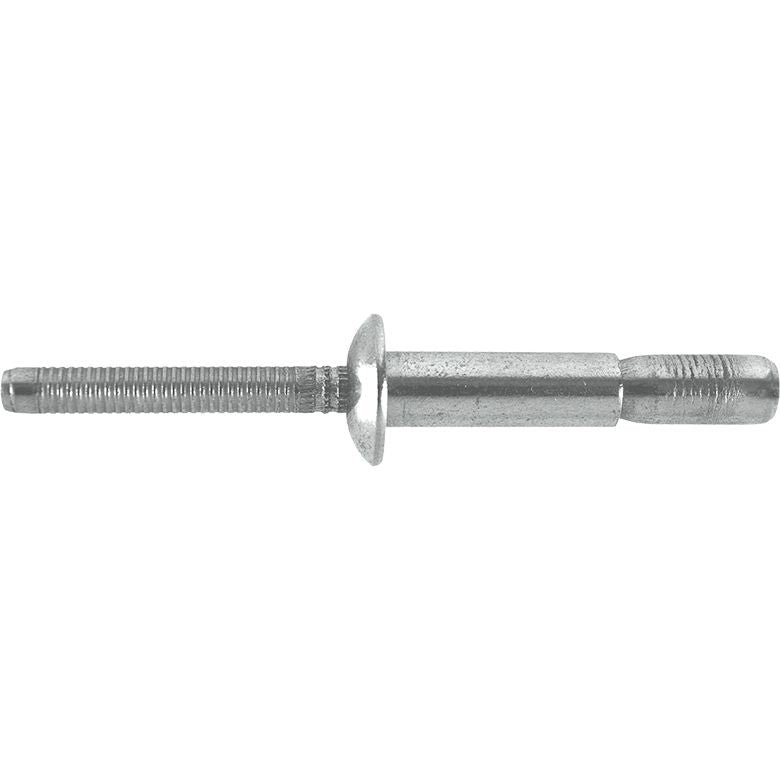

Structural Rivet, Internal Lock, Dome Head, Stainless Steel, 1/4" Diameter, 0.08 to 0.375" Grip Range, 0.56" Body Length
(Pack of
500)
SKU:1557949 Item#: 1557949
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-120
Frequently Bought Together
Hex Flange Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M12
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
$0.00
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 3/16"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
$0.00
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1557949 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.375 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.560 " |
| Shear Strength | 2,400 lb |
| Tensile Strength | 1,850 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 10.14 lb |
